VMC 1160

X x Y x Z = 1160 x 610 x 600 mm Milling Capacity
1320 x 610 mm Table Size
2000 kg Load Capacity
45 mm Wide Linear Guides, 14 Roller Carriages, Dynamic and Rigid Structure
Monoblock Cast Iron Body
CTS Spindle Options with Different Speed and Power Features
Siemens, Heidenhain and Fanuc CNC Control Systems
Simultaneous 4th Axis Dividing Rotary Table Ready

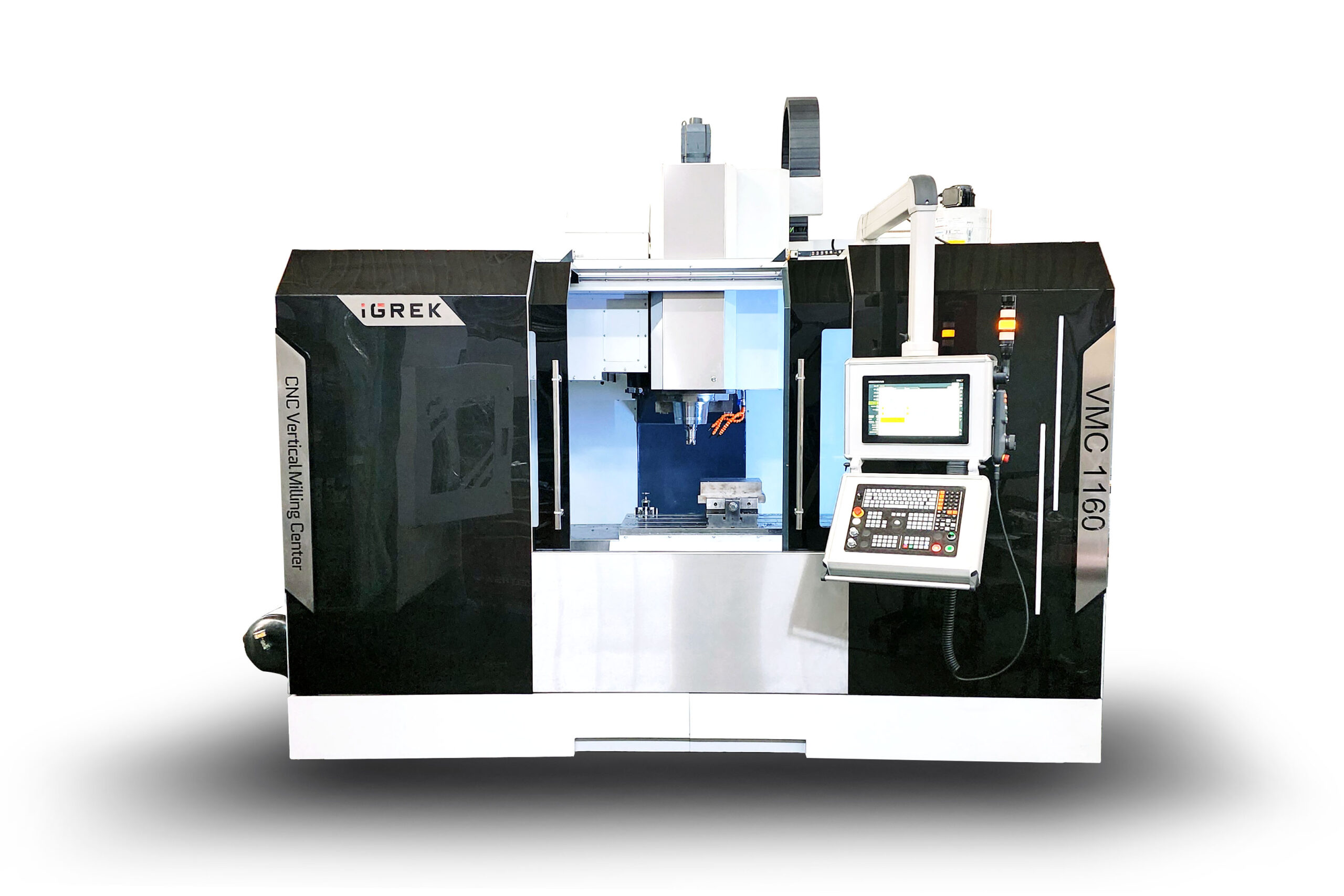

VMC 1160

3-Axis CNC Vertical Milling Center

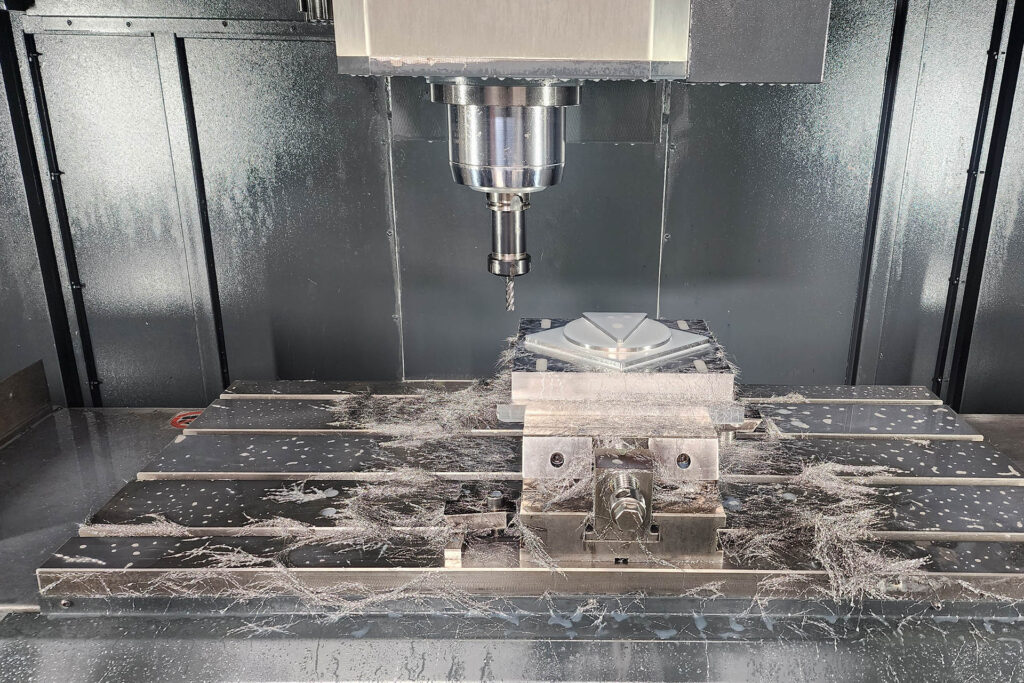

With its robust cast iron structure and high-quality dynamic components, the VMC 1160 is an all-around CNC Vertical Machining Center capable of performing essential machining operations with high precision.

By integrating various fixtures, rotary tables, measuring probes, and an automatic tool changer, the machine delivers high-value part production across multiple industries.

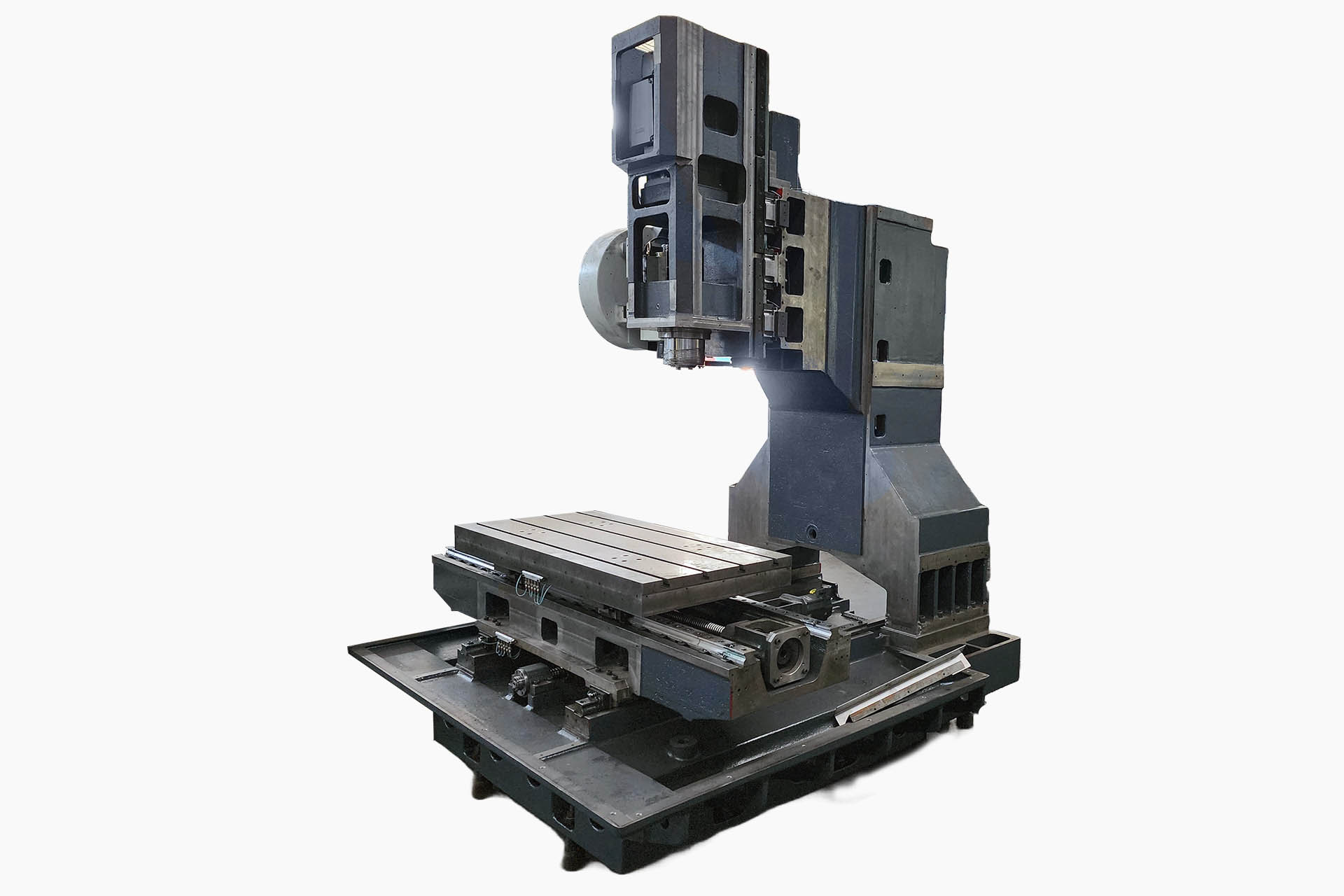

The VMC 1160 is entirely constructed from GG30 cast iron, with all body parts manufactured in-house. The castings undergo stress-relieving heat treatment, followed by precision milling. Parts are precision milled, guideway and rack mounting surfaces are grinded.

Features

		X	1160
Stroke	mm	Y	610
		Z	600
		X	40
4. Simultaneous Axis		Prepared, various rotary tables are added as an option.
Table Size	mm		1320 x 610
		X	30
Rapid Feedrate	rpm	Y	30
		Z	30
			Option 1	Option 2
			Direct Connection, With Internal Water Supply (CTS)	Built-in, With Internal Water Supply (CTS)
Spindle Speed	rpm		10000	16000
Spindle Power	kW		10	26
Spindle Torque	Nm		105	75
Tooling Taper Type			BT40 / HSK-A63
Table Load	kg		2000
Automatic Tool Magazine			32 Tool Capacity
		X	3460
Machine Size	mm	Y	2850
		Z	3500
Machine Weight	kg		6000

All equipment used in our machines are selected from the top series of the leading brands in their class. High quality sustainability is maintained with strong communication and support with our suppliers.
