- X x Y x Z = 900 x 900 x 600 mm Milling Capacity
- Ø800 mm 450 rpm Table Size
- 1500 kg Table Load Capacity
TT Series

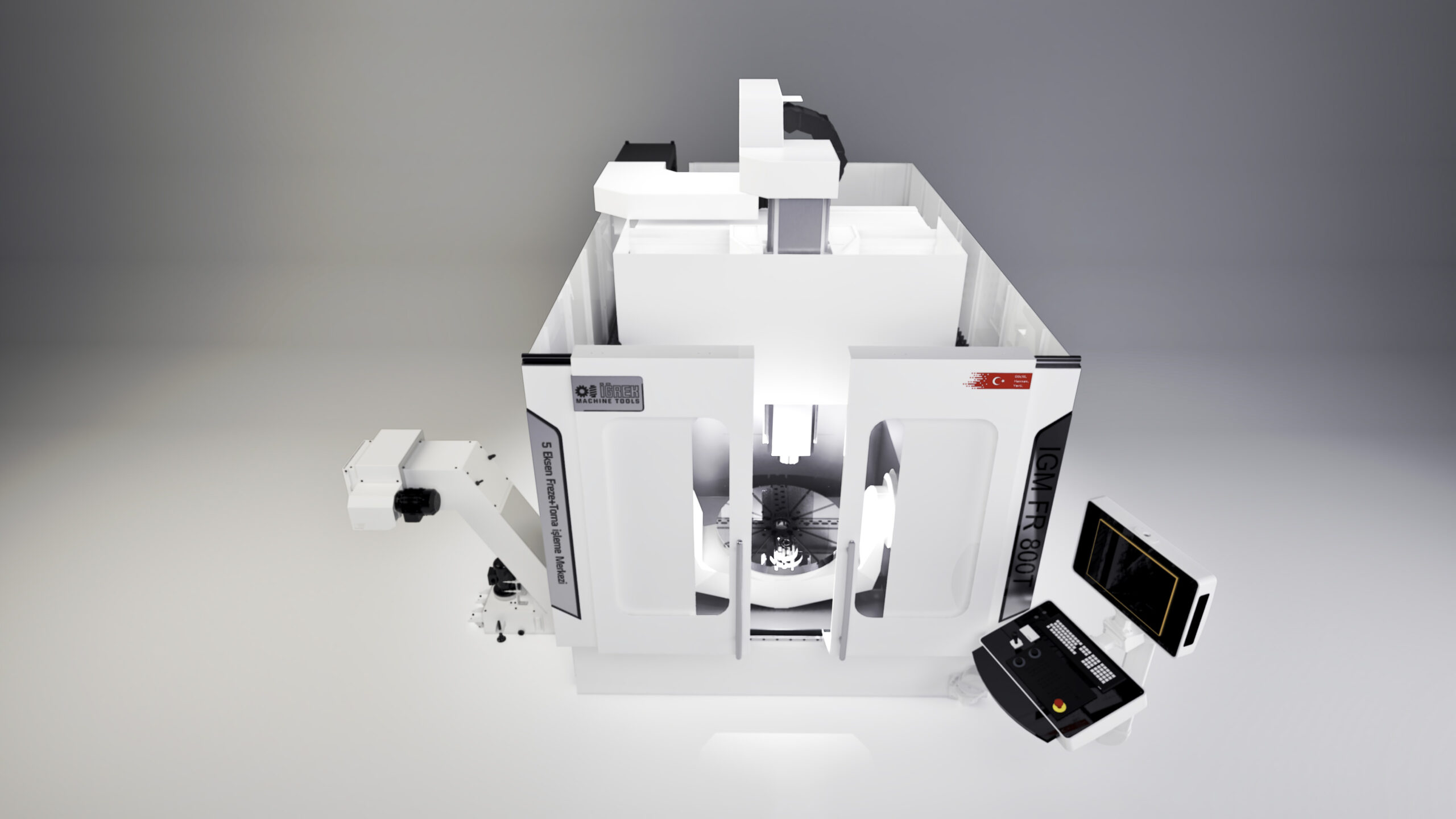

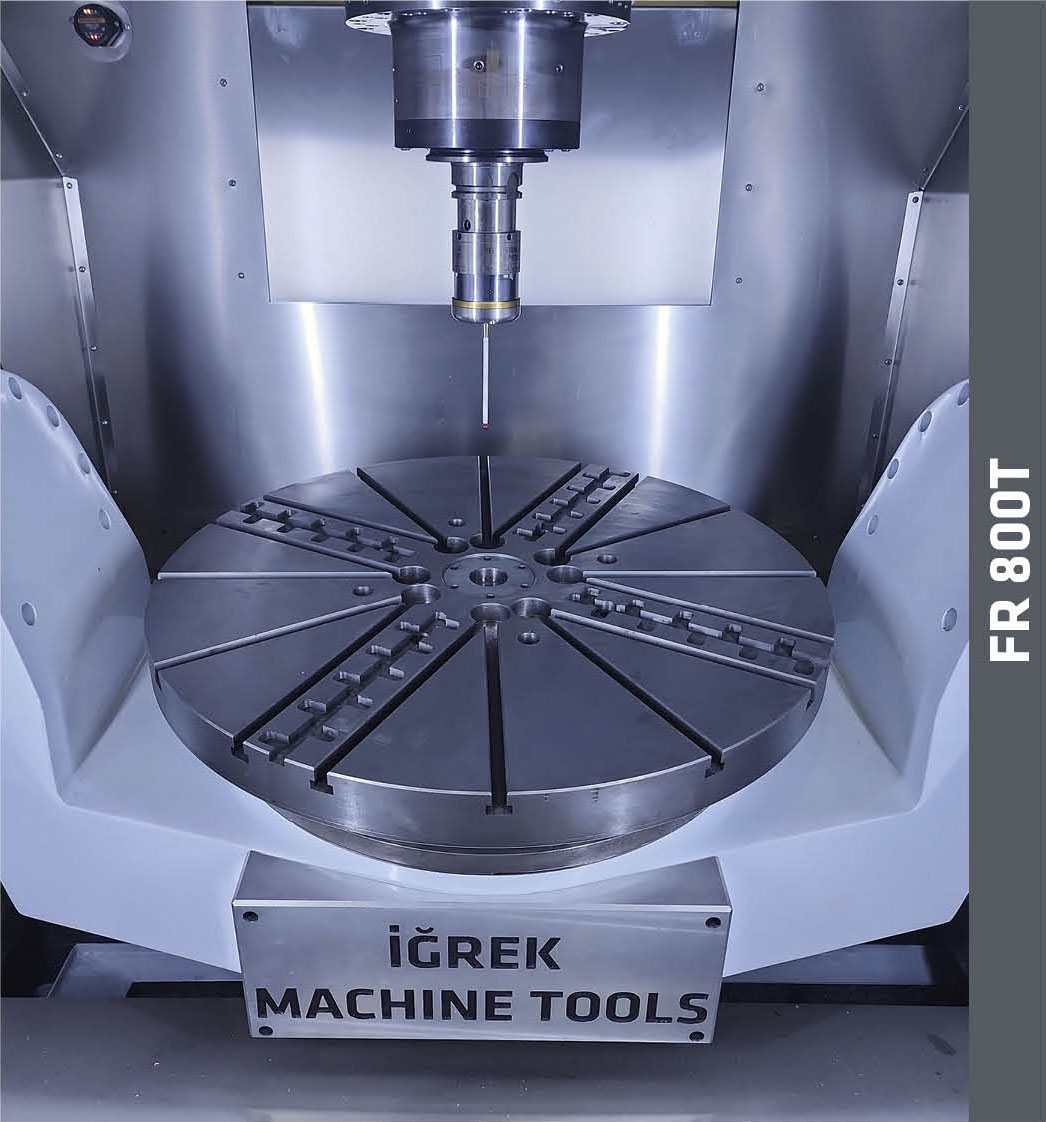

FR 800T
5-Axis Mill Turn Center

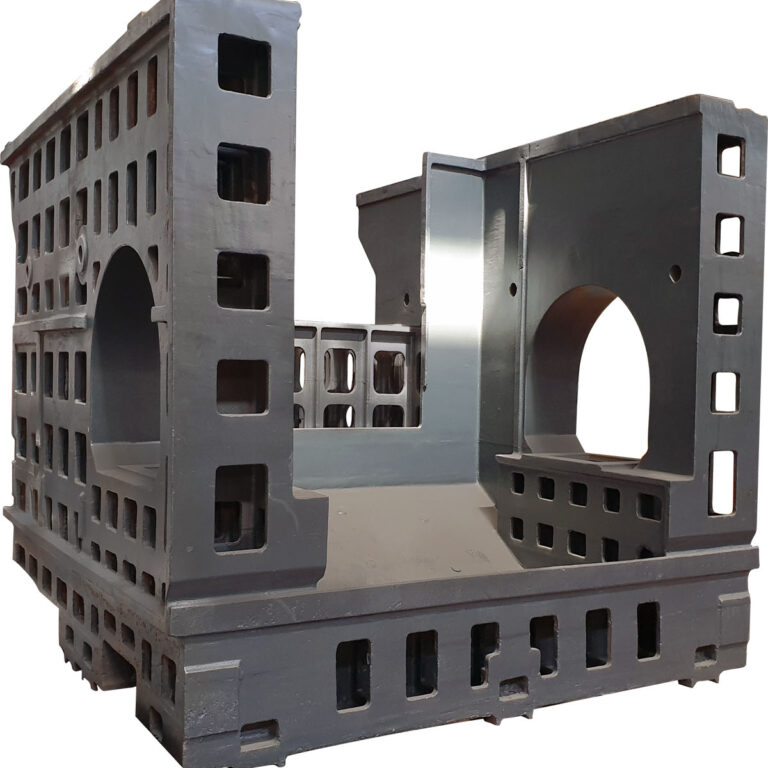

A compact yet powerful machine tool designed for high precision and efficiency. With its rigid cast iron monoblock body and advanced automation, performs all complex milling and turning operations in a single setup.

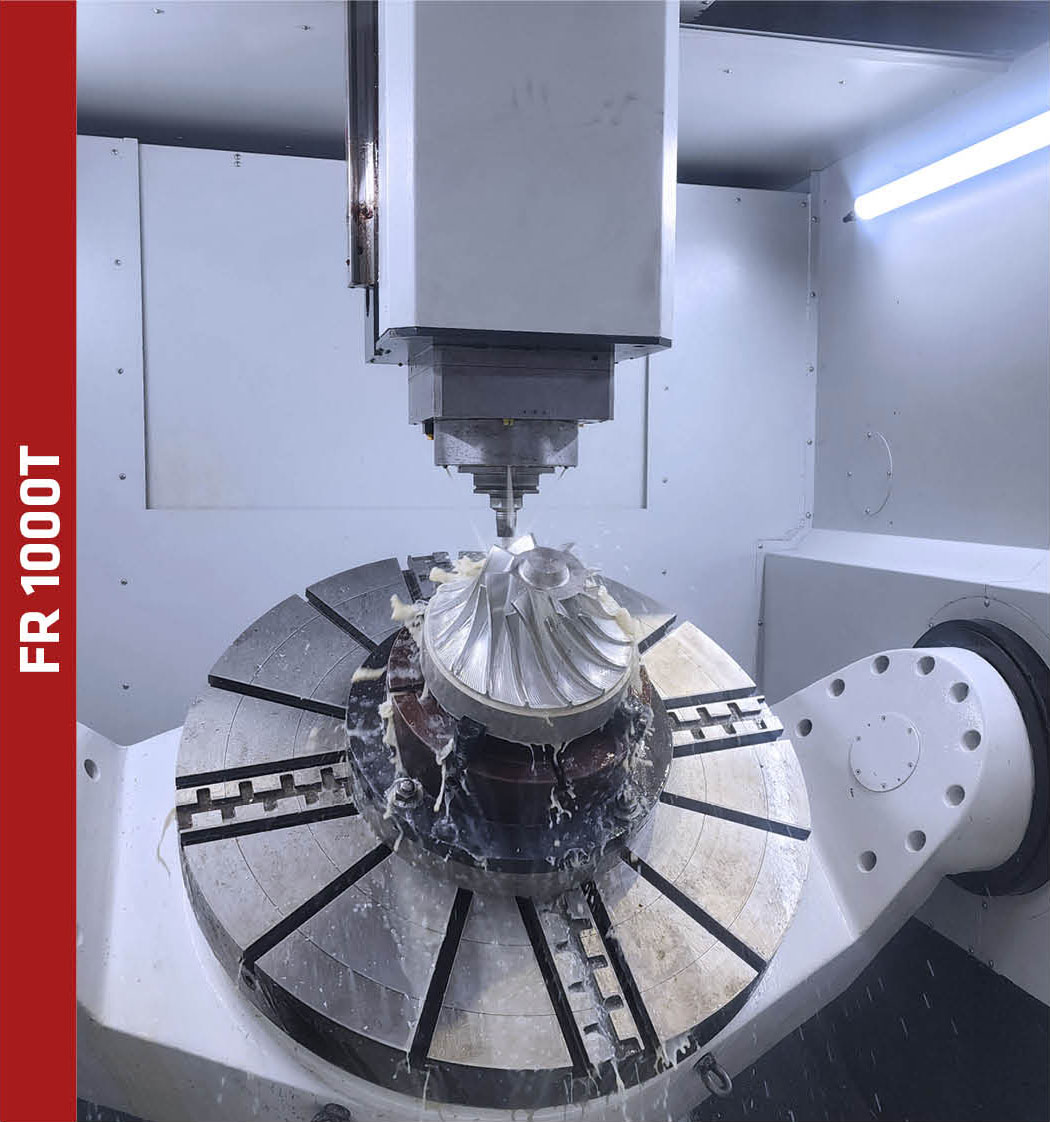

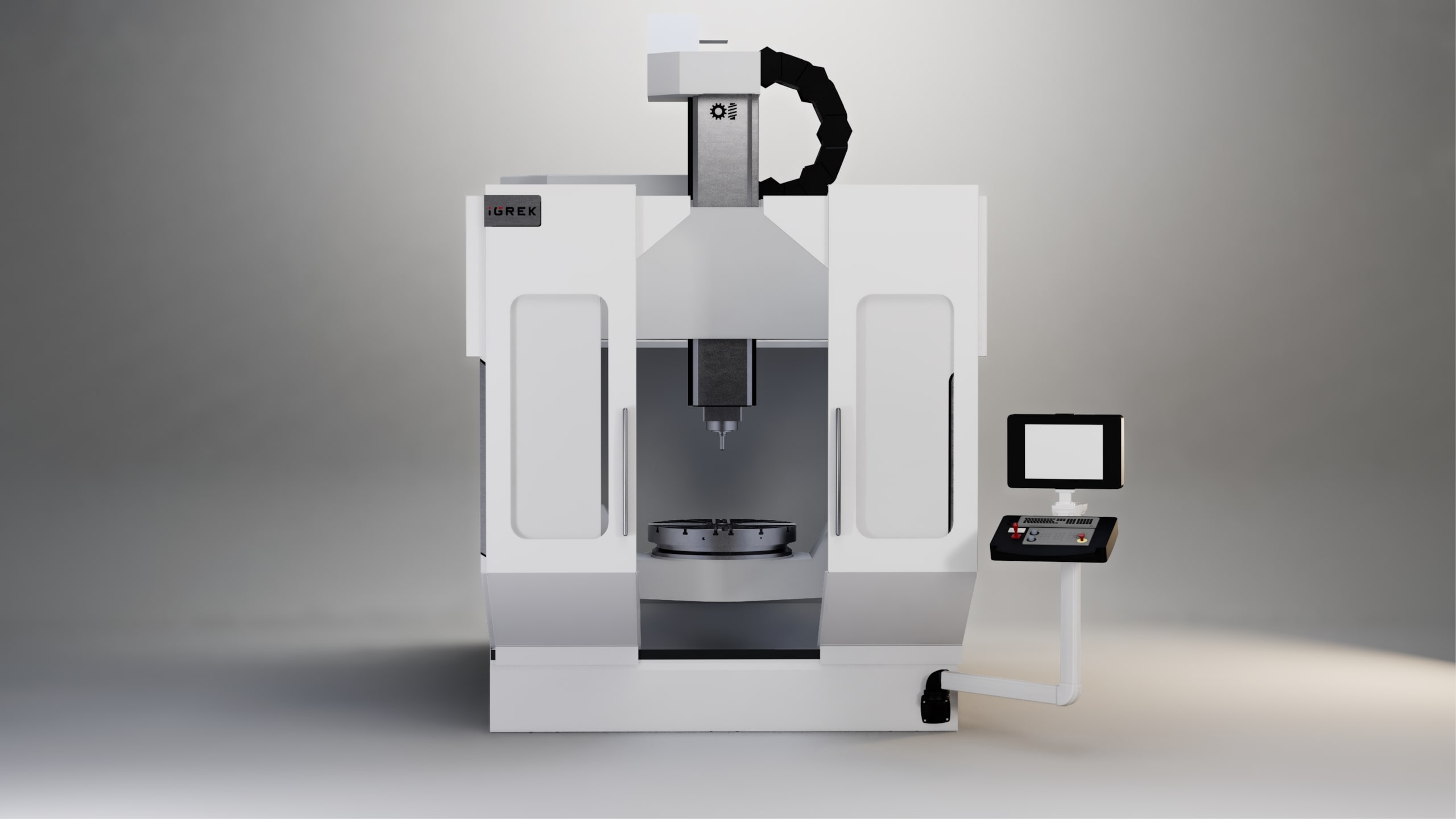

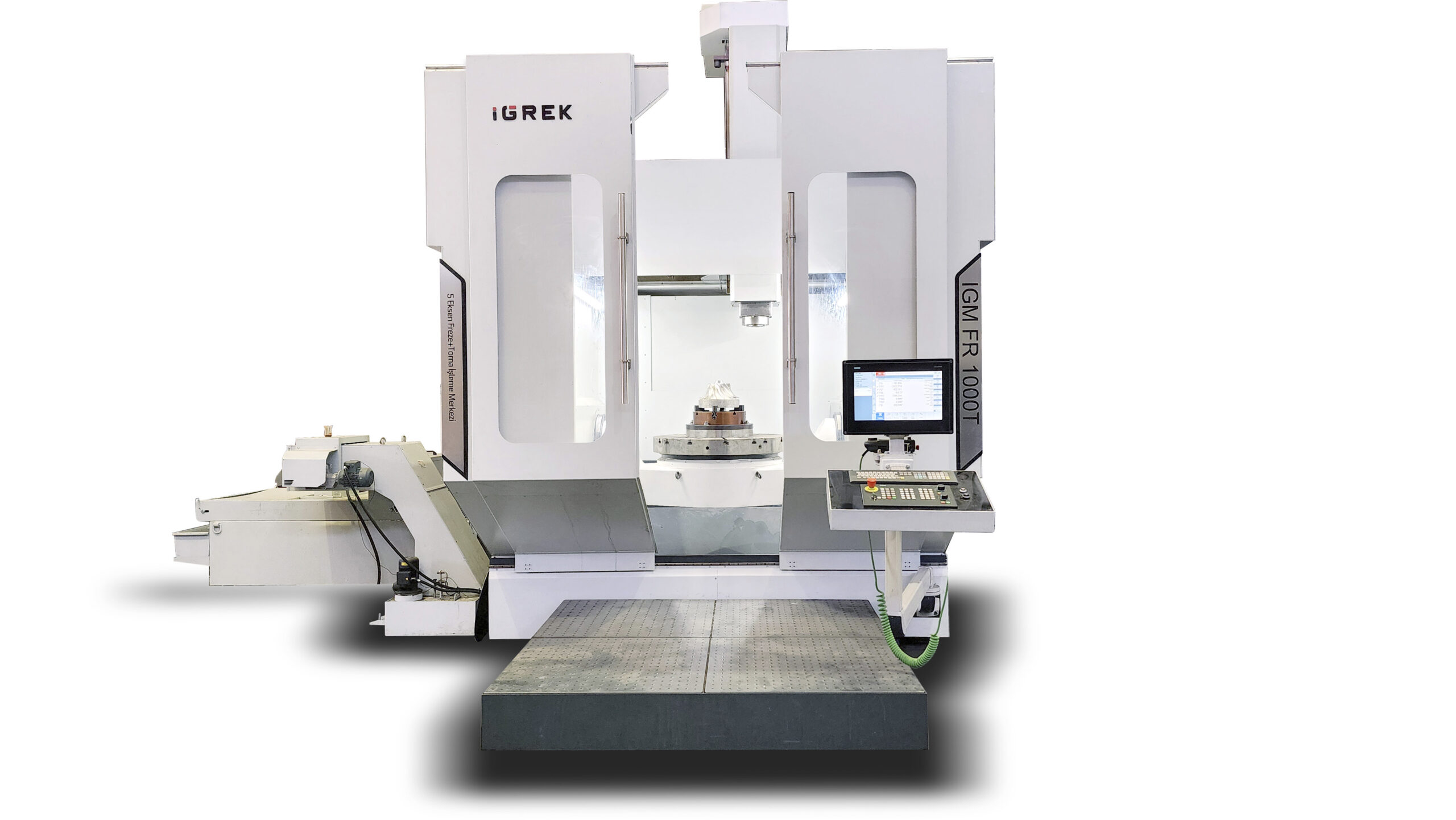

FR 1000T
5-Axis Mill Turn Center

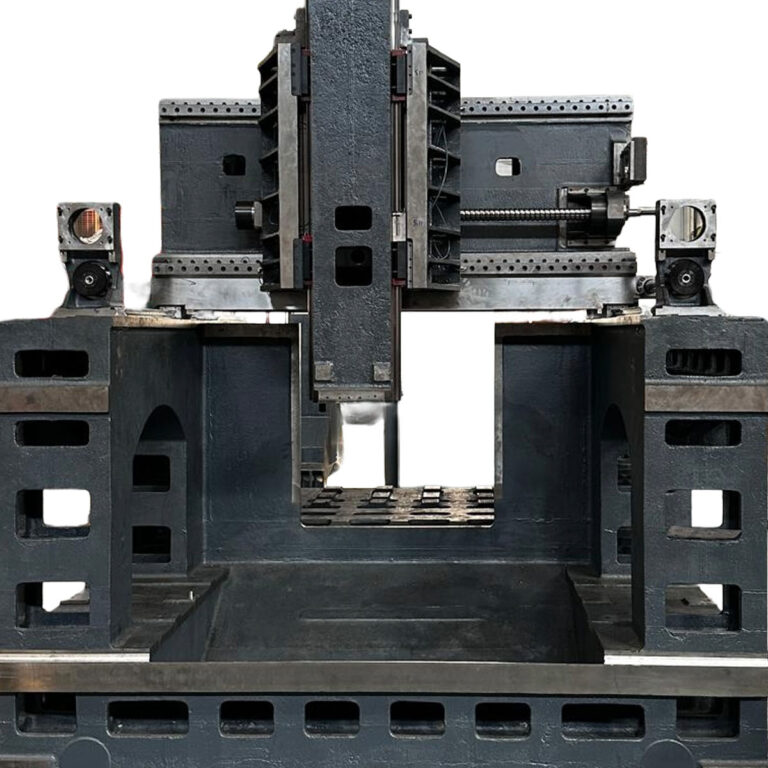

A Large sized high-end machine for precise milling and turning operations. With its cast iron single block body structure and superior automation, capable of processing all operations of complex geometry parts.
- X x Y x Z = 1350 x 1500 x 600 mm Milling Capacity
- Ø1000 mm 600 rpm Table Size
- 2000 kg Table Load Capacity
Features
| TECHNICAL DETAILS | FR 800T | FR 1000T | ||
|---|---|---|---|---|
| General Features | ||||
| Stroke | mm | X x Y x Z | 900 x 900 x 600 | 1350 x 1500 x 900 |
| A-Axis Rotation | ° | ± 120 | ± 120 | |
| C-Axis Rotation | ° | ∞ 360 | ∞ 360 | |
| Accerelation | m/s2 | Y | 4 | 4 |
| X | 40 | 40 | ||
| Rapid Feedrate | m/min | Y | 40 | 40 |
| Z | 40 | 40 | ||
| Spindle | ||||
| Spindle Speed | rpm | 20000 | 15000 | |
| Spindle Power | kW | 25 | 35 | |
| Spindle Torque | Nm | S1 | 87 | 220 |
| Tooling Taper Type | HSK-T63 | HSK-T100 | ||

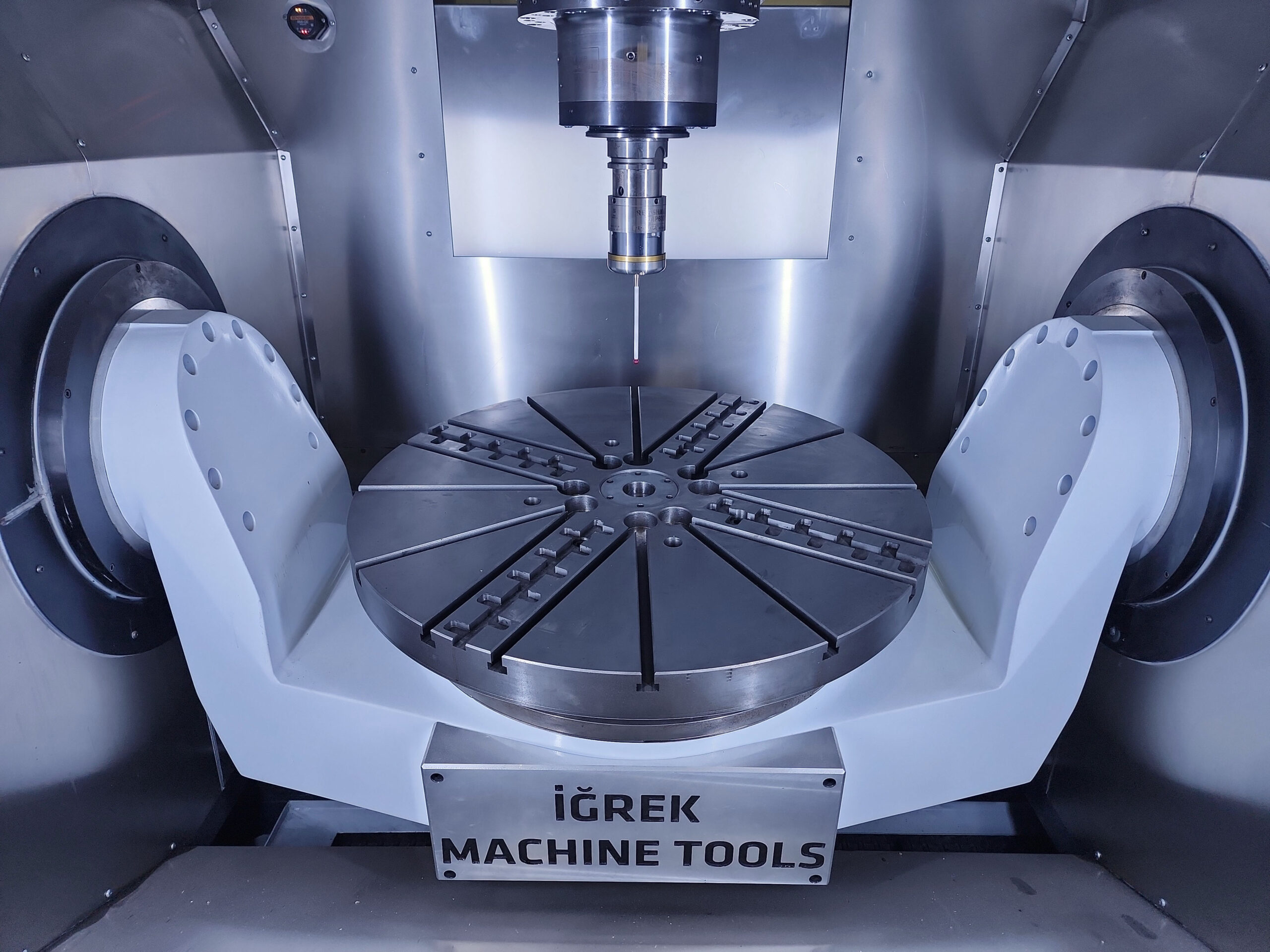

| Tilting Table Properties | ||||
| Max. Workpiece Diameter | mm | 800 | 1000 | |
| A-Axis Stroke | ° | ± 120 | ± 120 | |
| A-Axis Nominal Power | kW | 12 | 20,34 | |
| A-Axis Max. Speed | rpm | 100 | 100 | |
| A-Axis Max. Brake Torque | Nm | 6000 | 10000 | |
| C-Axis Power | kW | 54,2 | 43 | |
| C-Axis Max. Speed | rpm | 450 | 600 | |
| C-Axis Nominal Torque | Nm | 2080 | 3176 | |
| C-Axis Max. Brake Torque | Nm | 3800 | 10000 | |
| Table Load | kg | 1500 | 2000 | |
| Physical Characteristics | ||||
| Length x Width x Height | X x Y x Z | 2550 x 4400 x 3700 | 3200 x 6400x 4050 | |
| Weight | kg | 18000 | 40000 | |
| ATC Capacity | 40 | 48 | ||
| CNC Controller | Siemens, Fanuc, Heidenhain | |||
All equipment used in our machines are selected from the top series of the leading brands in their class. High quality sustainability is maintained with strong communication and support with our suppliers.

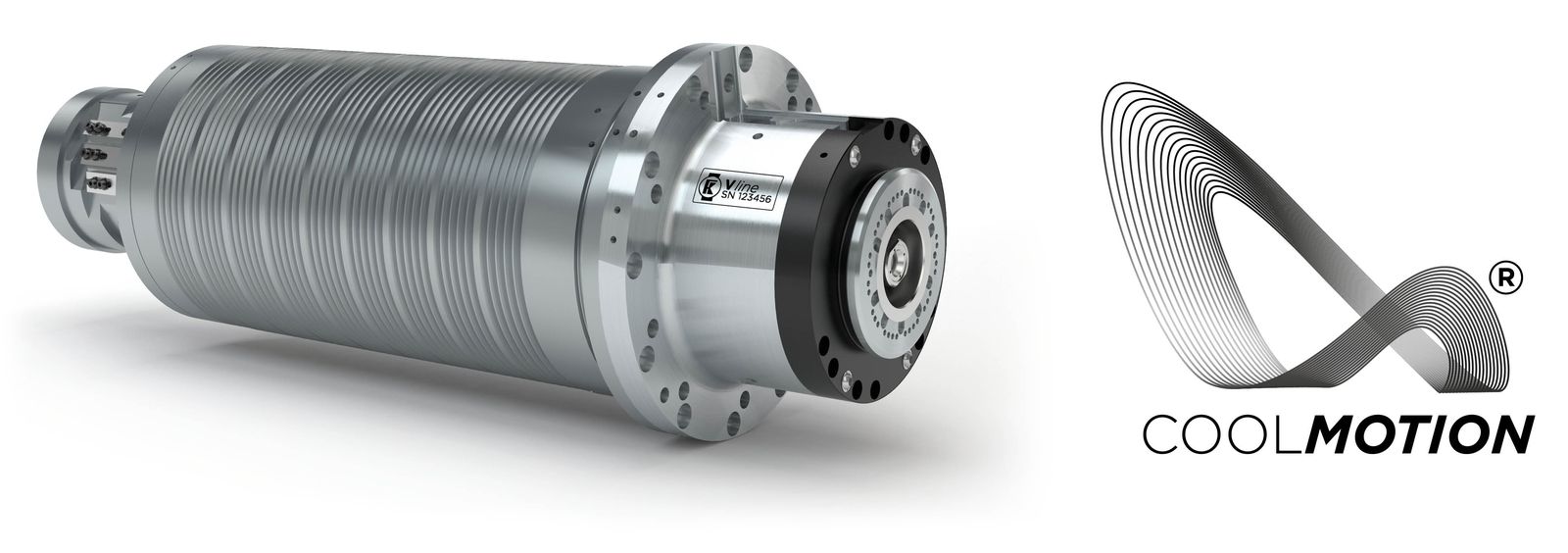

FR 800T
SPINDLE FITTING: Ø 202 mm
KESSLER COOLMOTION® MOTOR
ROTARY UNION: COOLANT THROUGH SPINDLE (CTS)
COOLING: CLOSED COOLING CIRCUIT
BEARING LUBRICATION: OIL-AIR
DRIVE CONSTRUCTION: ASYNCHRONOUS
SPEED MAX.: 20000 rpm
TORQUE S1: 87 Nm
POWER S1: 25 kW
TOOL HOLDER: HSK-T63

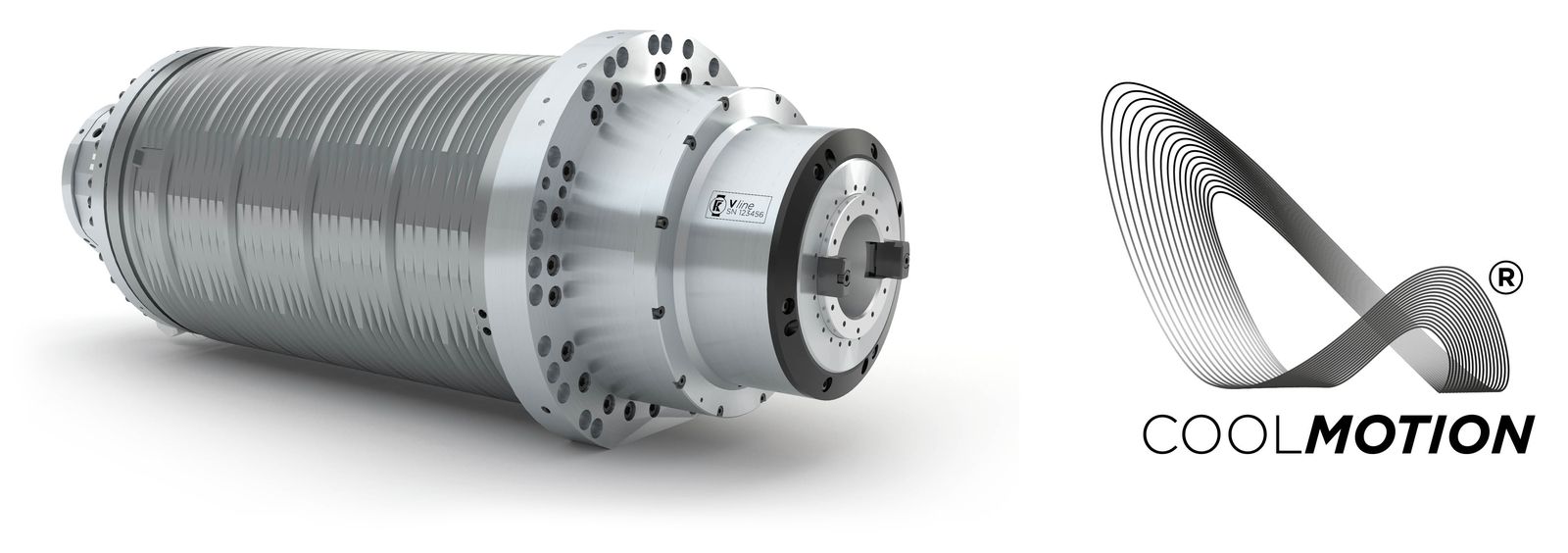

FR 1000T
SPINDLE FITTING: Ø 240 mm
KESSLER COOLMOTION® MOTOR
ROTARY UNION: COOLANT THROUGH SPINDLE (CTS)
COOLING: CLOSED COOLING CIRCUIT
BEARING LUBRICATION: OIL-AIR
DRIVE CONSTRUCTION: ASYNCHRONOUS
SPEED MAX.: 15000 rpm
TORQUE S1: 220 Nm
POWER S1: 35 kW
TOOL HOLDER: HSK-T100
