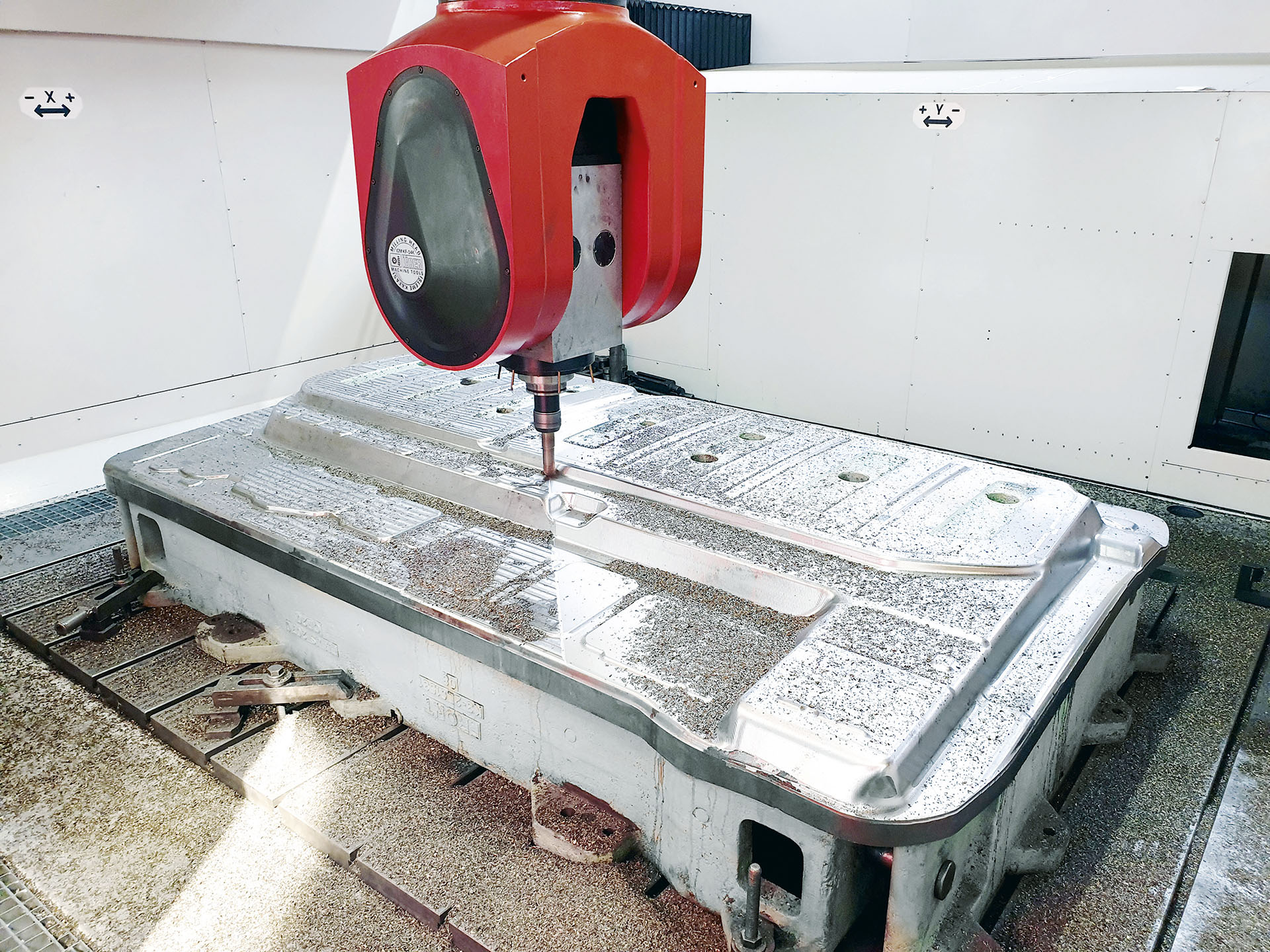

FR 3500 Gantry Series

X x Y x Z = 2500 x 3500 x 1400 mm Milling Size
12500 rpm / 200 Nm Fork Type Machining Head
2290 x 3580 mm Table Size

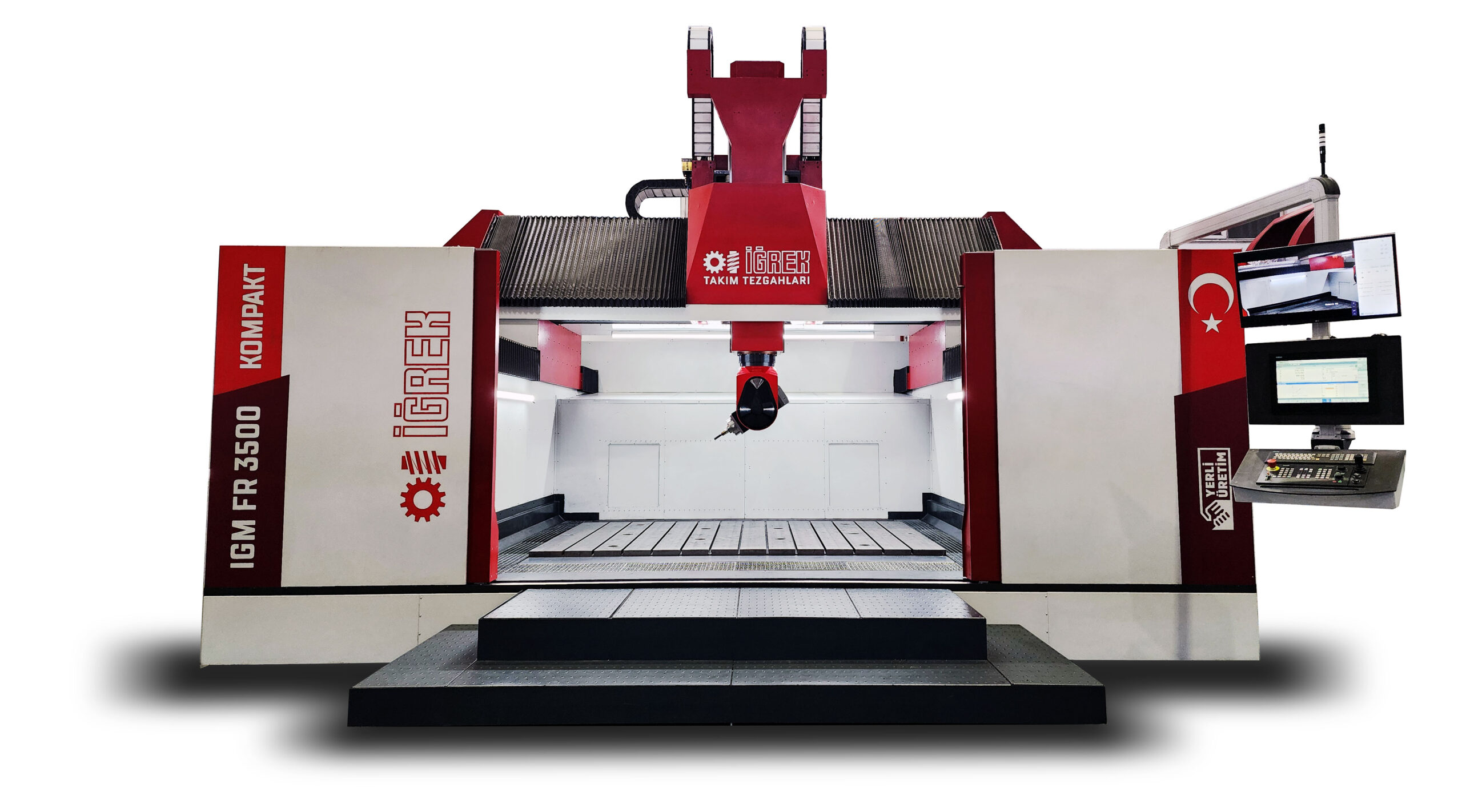

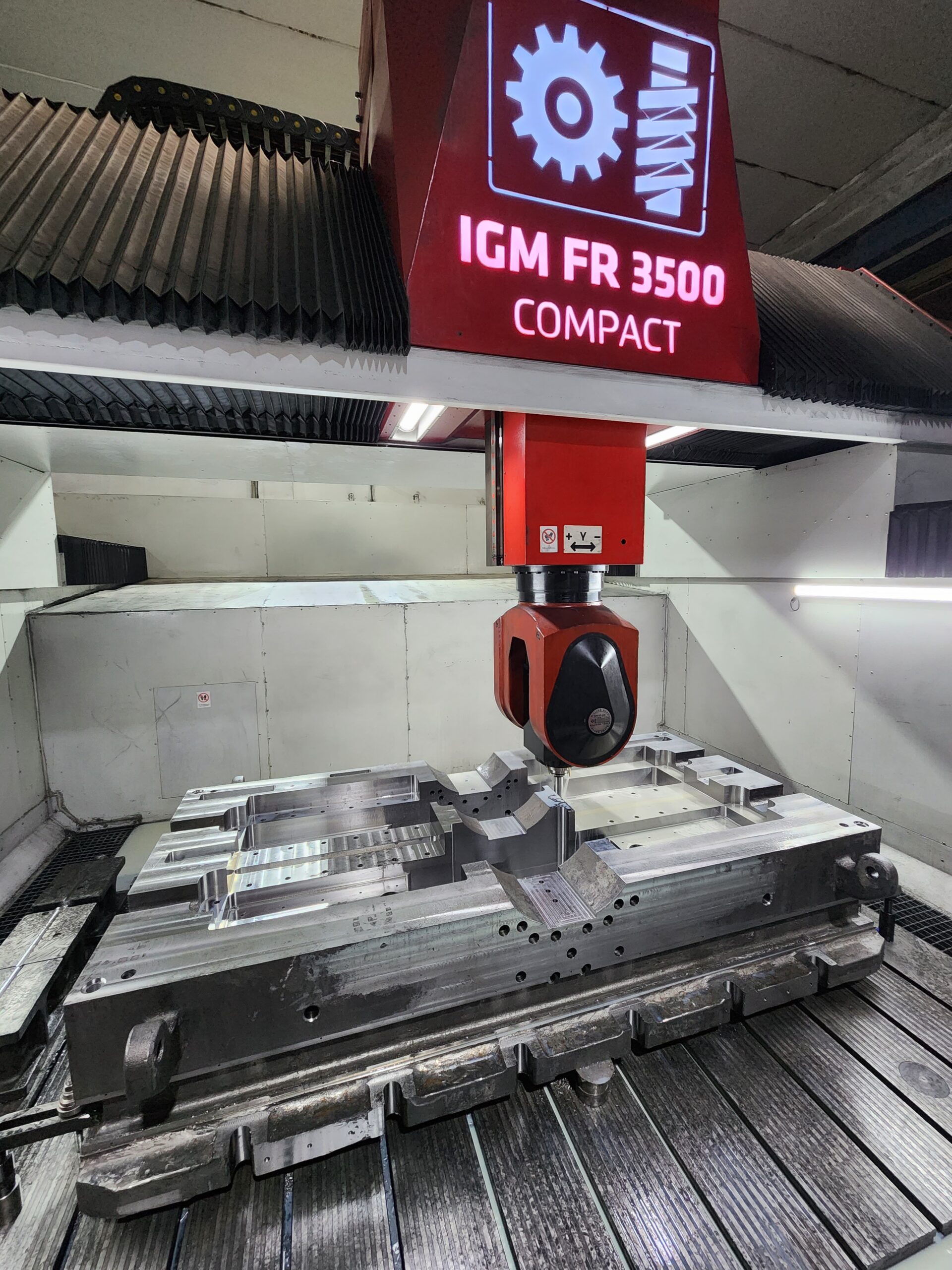

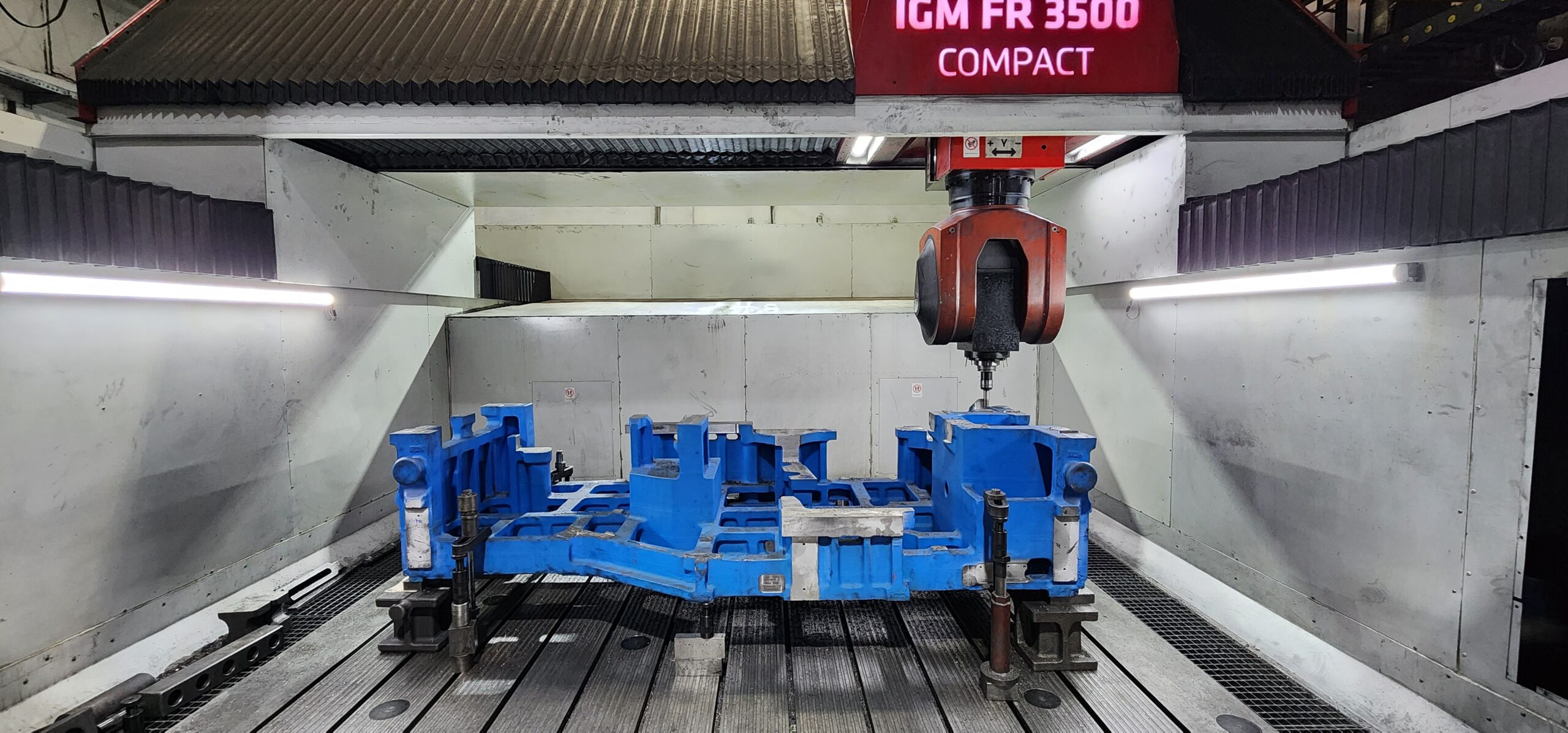

FR 3500 Compact

5-Axis Gantry Type Milling Machine

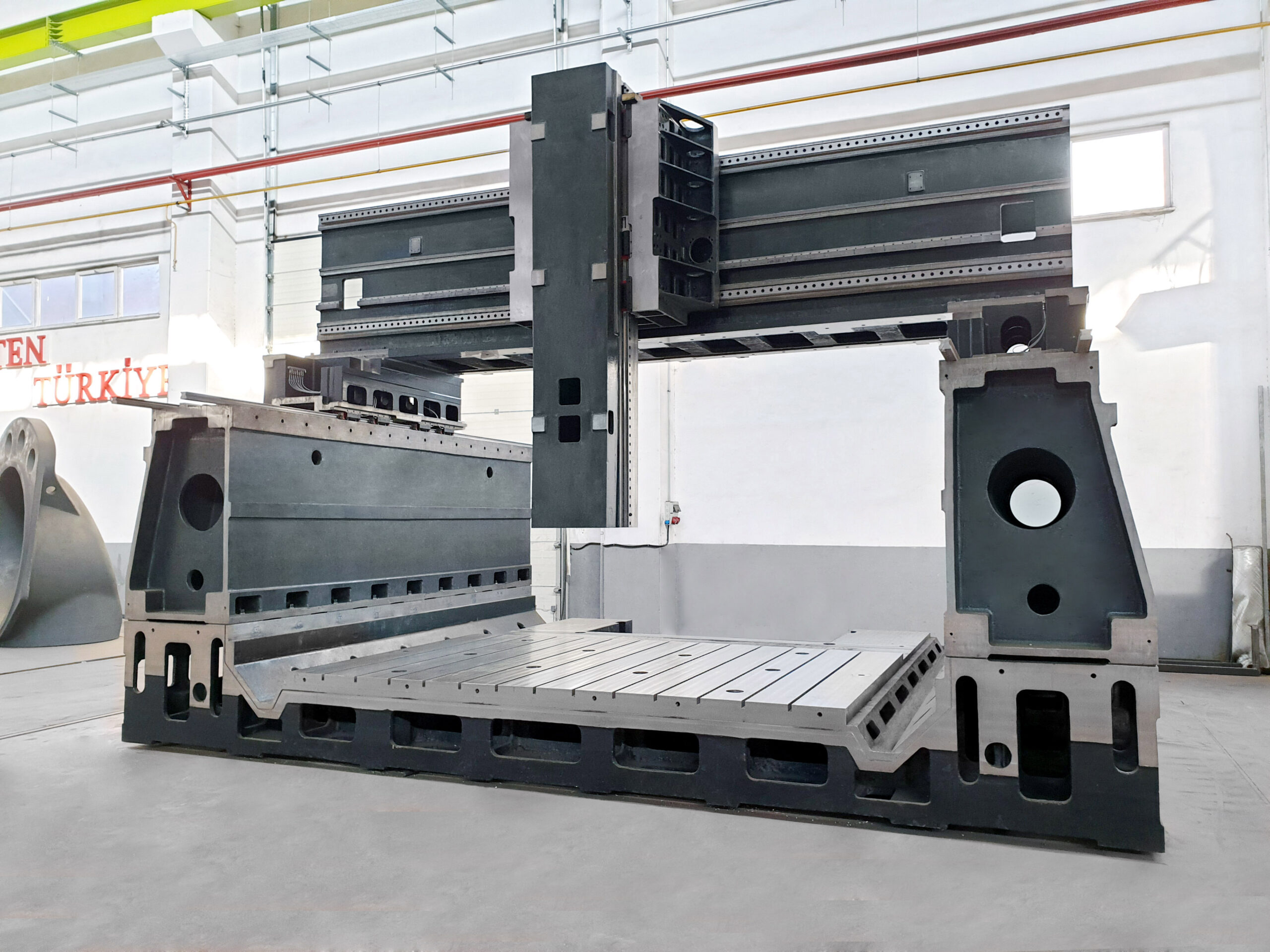

The FR 3500 Compact is designed for maximum performance within a minimal footprint. With an X-axis travel of 2,500 mm, it offers impressive precision and productivity in limited workshop spaces. Its rigid cast-iron structure ensures stability during heavy-duty machining, while the compact layout provides high efficiency and easy access for operators. Ideal for tool and die manufacturers seeking flexibility without compromising accuracy.

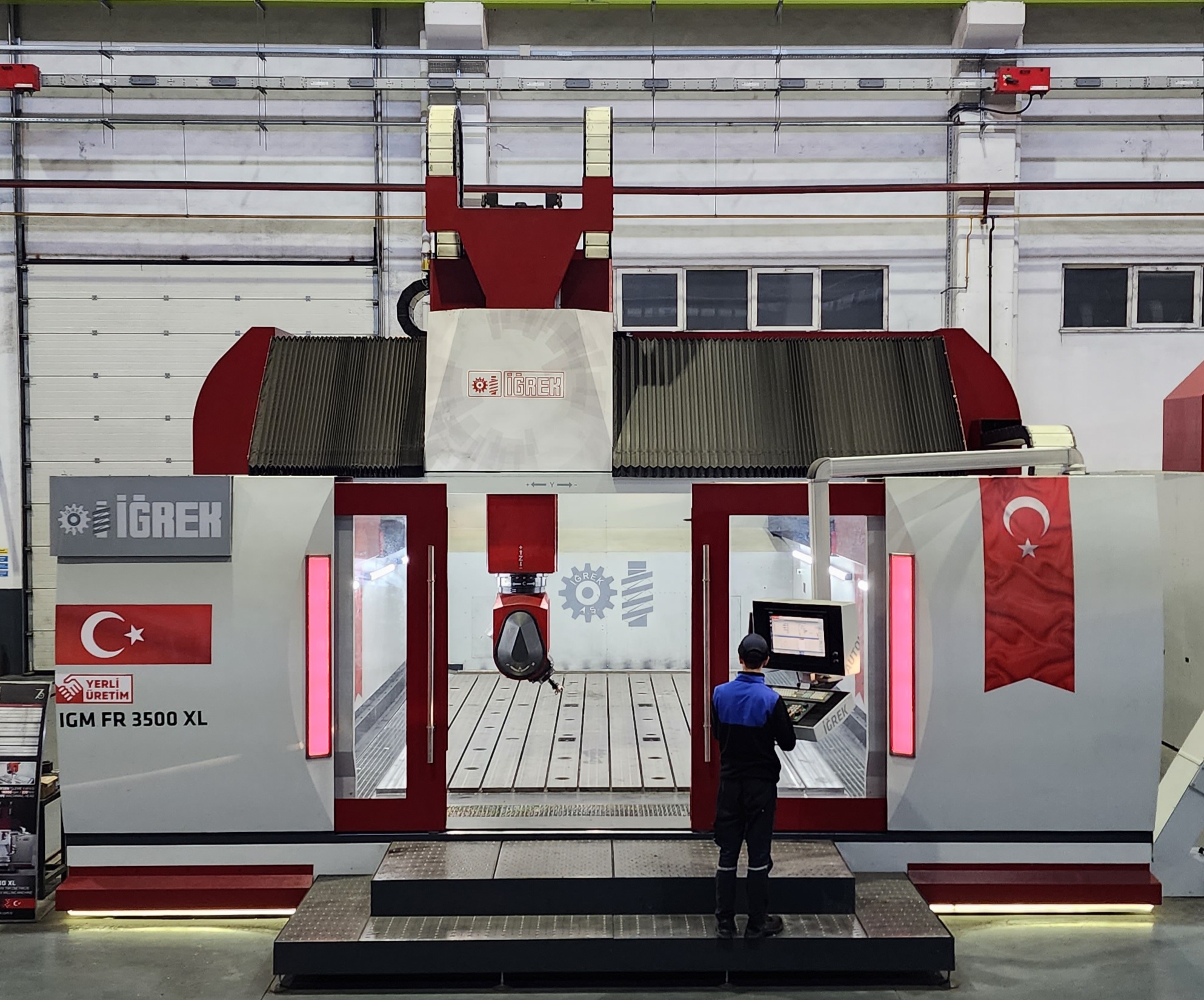

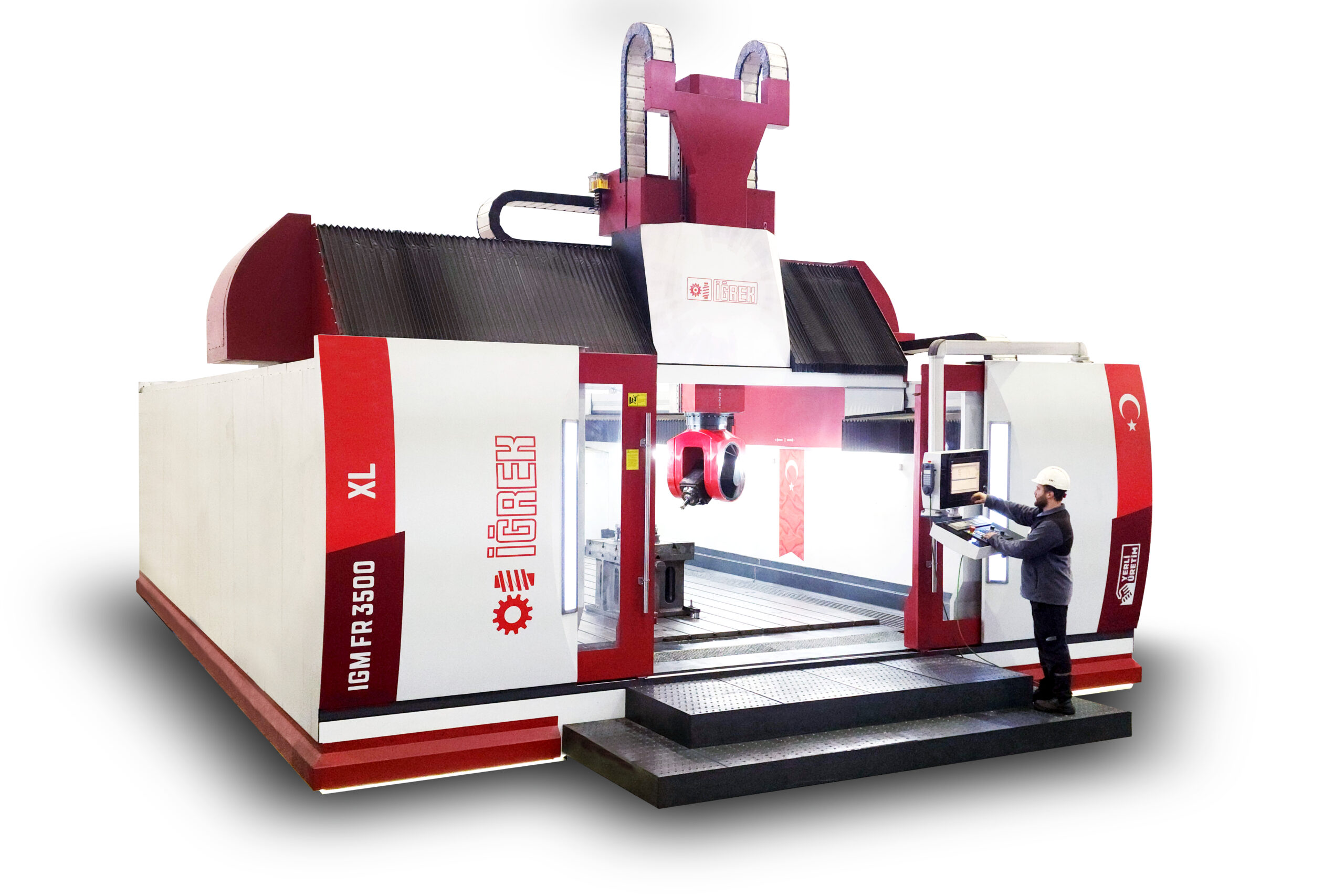

FR 3500 XL

5-Axis Gantry Type Milling Machine

The FR 3500 XL extends the capabilities of the series with a long X-axis of 6,500 mm, making it perfect for machining large-scale components that demand superior accuracy and surface quality. Maintaining the same dynamic gantry design and powerful electrospindle head, the XL model delivers exceptional rigidity and repeatability across its extended working range — ideal for the automotive, aerospace, and energy industries.

X x Y x Z = 6500 x 3500 x 1400 mm Milling Size
12500 rpm / 200 Nm Fork Type Machining Head
6490 x 3580 mm Table Size

X x Y x Z =10000 x 5000 x 2000 mm Milling Size
15000 rpm / 300 Nm Fork Type Machining Head
10000 x 5000 mm Table Size

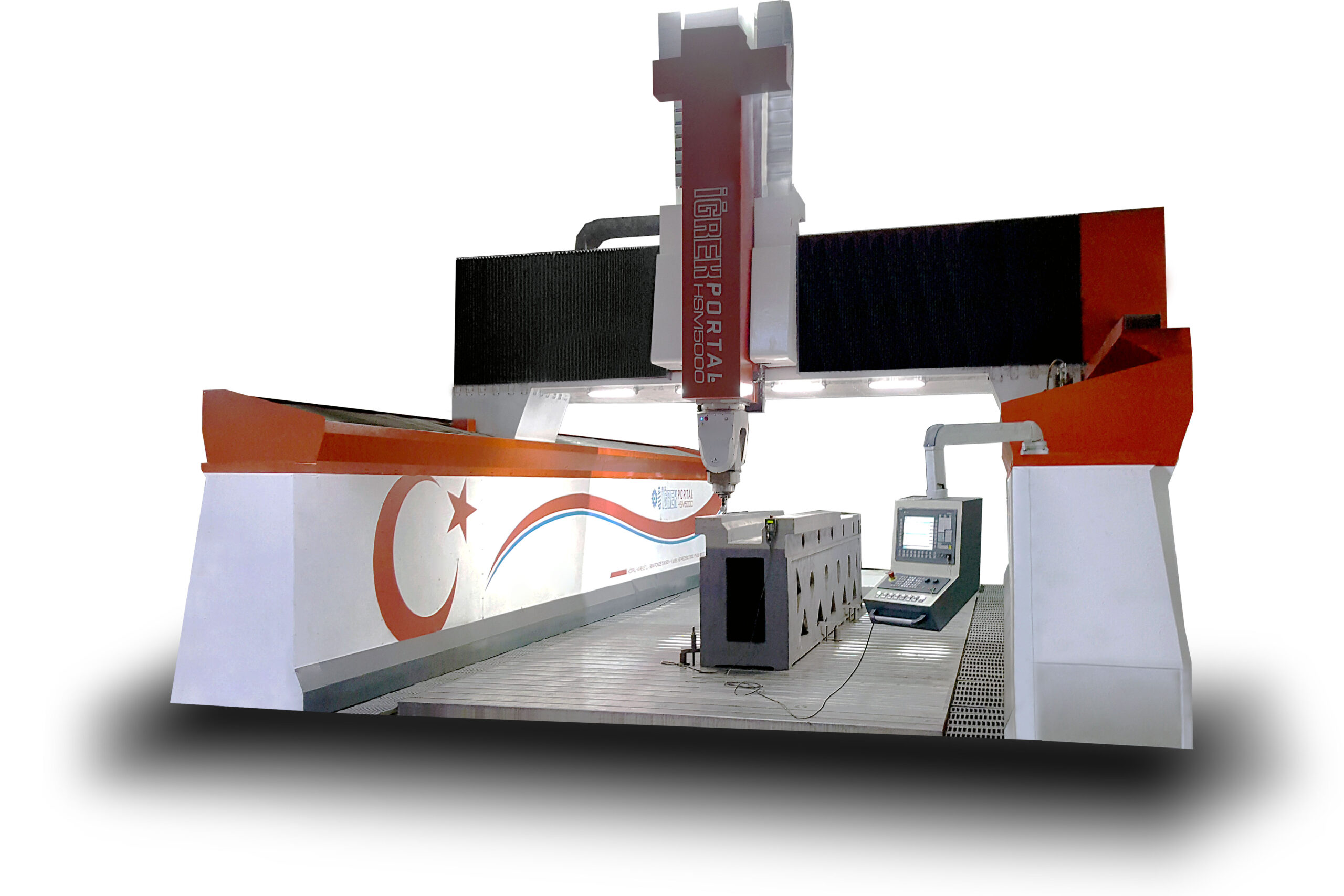

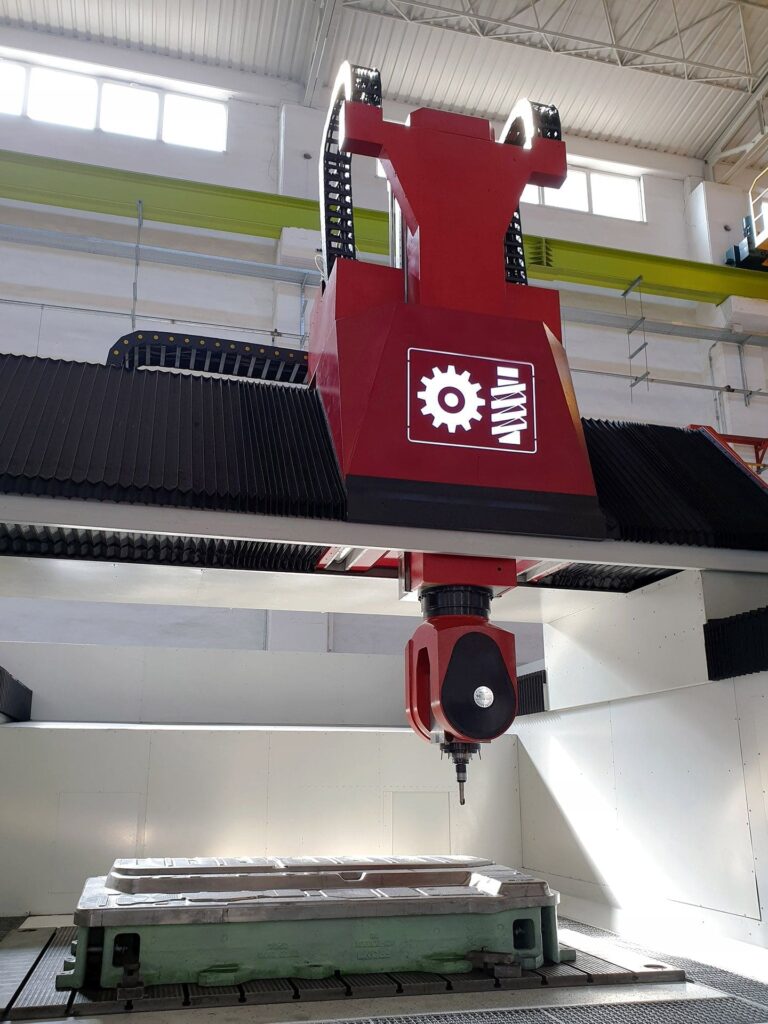

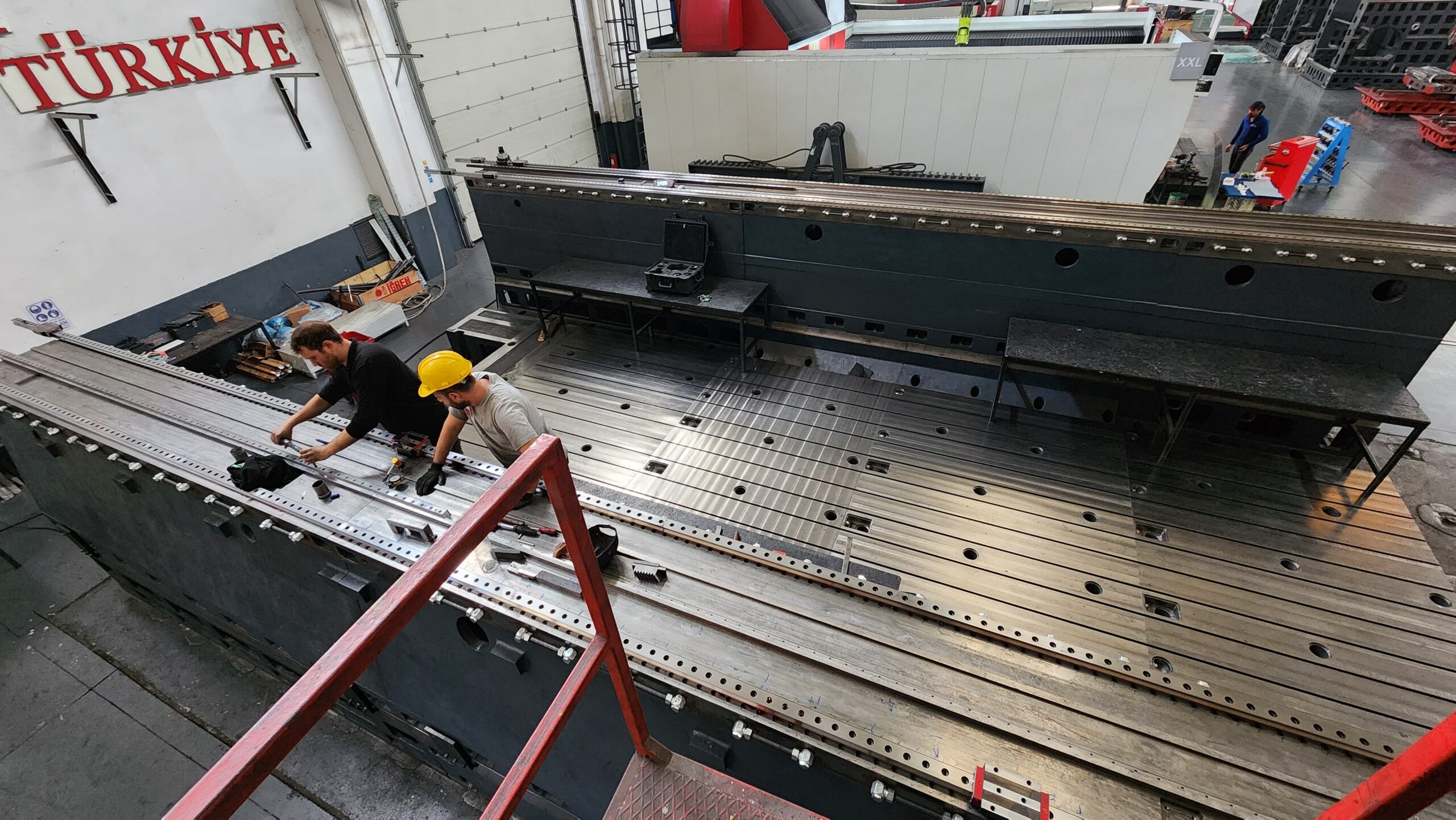

FR 5000 Portal

5-Axis Gantry Type Milling Machine

A TRUE PRODUCTION POWERHOUSE ENGINEERED FOR LARGE WORKPIECES WITH MASSIVE CAST-IRON STRUCTURE, ROBUST UPPER GANTRY CONSTRUCTION AND 5-AXIS HEAD EQUIPPED WITH A HIGH-TORQUE ELECTROSPINDLE IT ENSURES OUTSTANDING PERFORMANCE AND PRECISION. Its wide machining envelope and superior rigidity make it ideal for demanding applications that require consistent accuracy in every cycle.

Features

TECHNICAL DETAILS			FR 3500 Compact	FR 3500 XL	FR 5000 Portal
General Features
		X	2500	6500	10500
Stroke	mm	Y	3500	3500	3500
		Z	1400	1400	2350
A-Axis Rotation	°		± 115
C-Axis Rotation	°		± 360
		X	30
Rapid Feed Rate	m/min	Y	30
		Z	30
Positioning Accuracy	mm		<0,012
Repeatability Accuracy	mm		<0,010
Table Load	kg/m²		4000

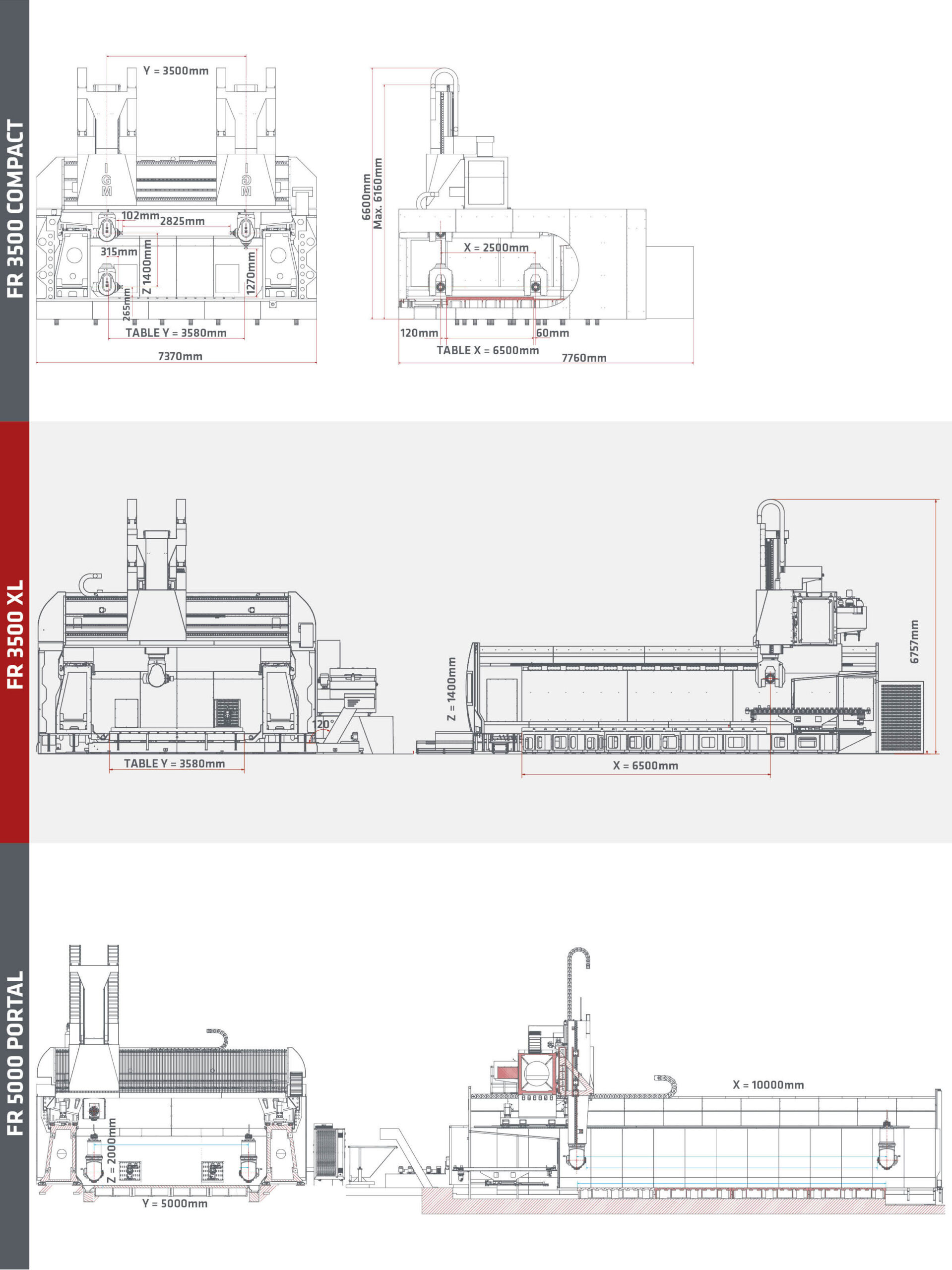

Physical Characteristics
Length		X	7800	11500	16000
Width	mm	Y	7370	7400	7400
Height		Z	6600	6600	8500
Weight	kg		70000	120000	180000

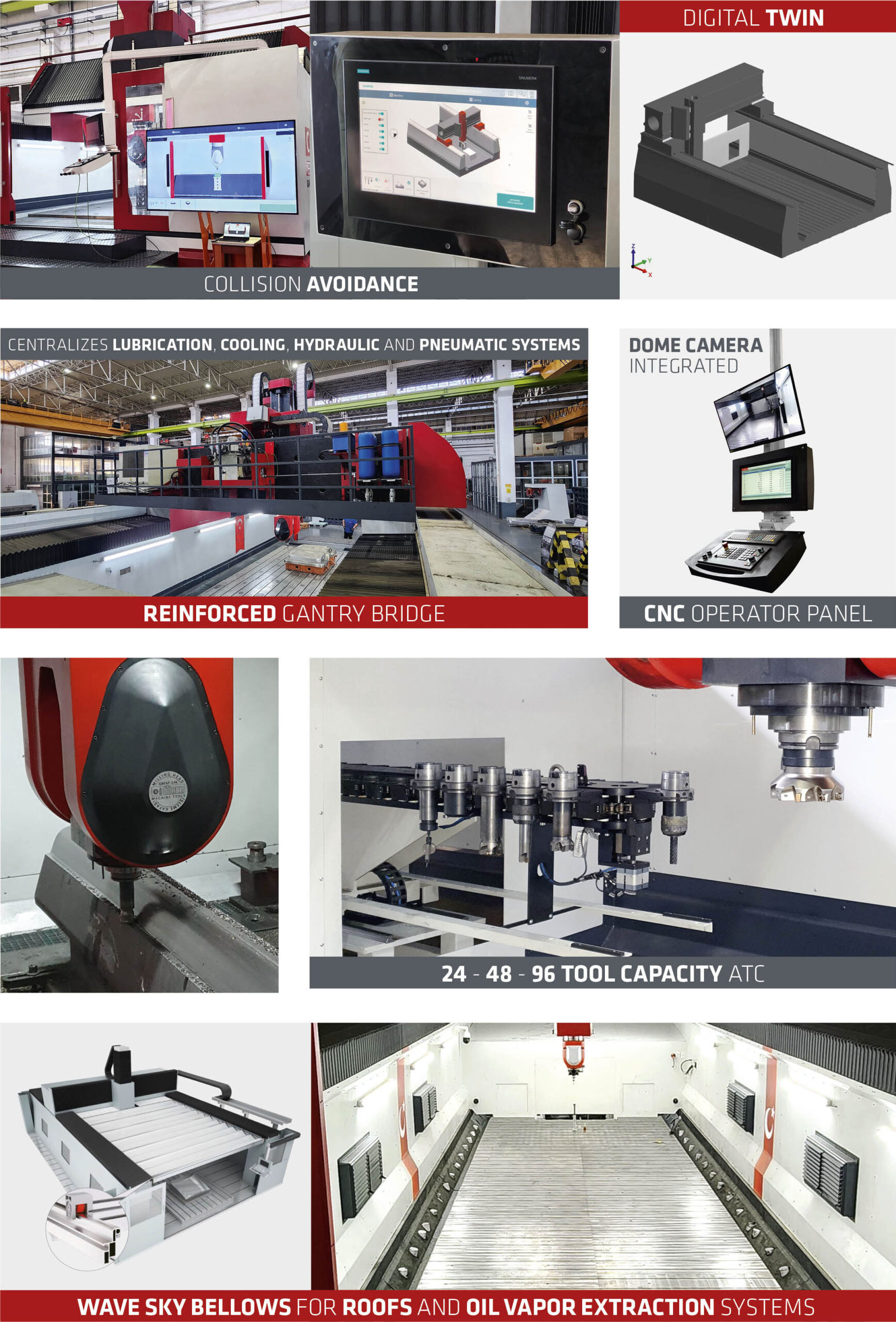

Options

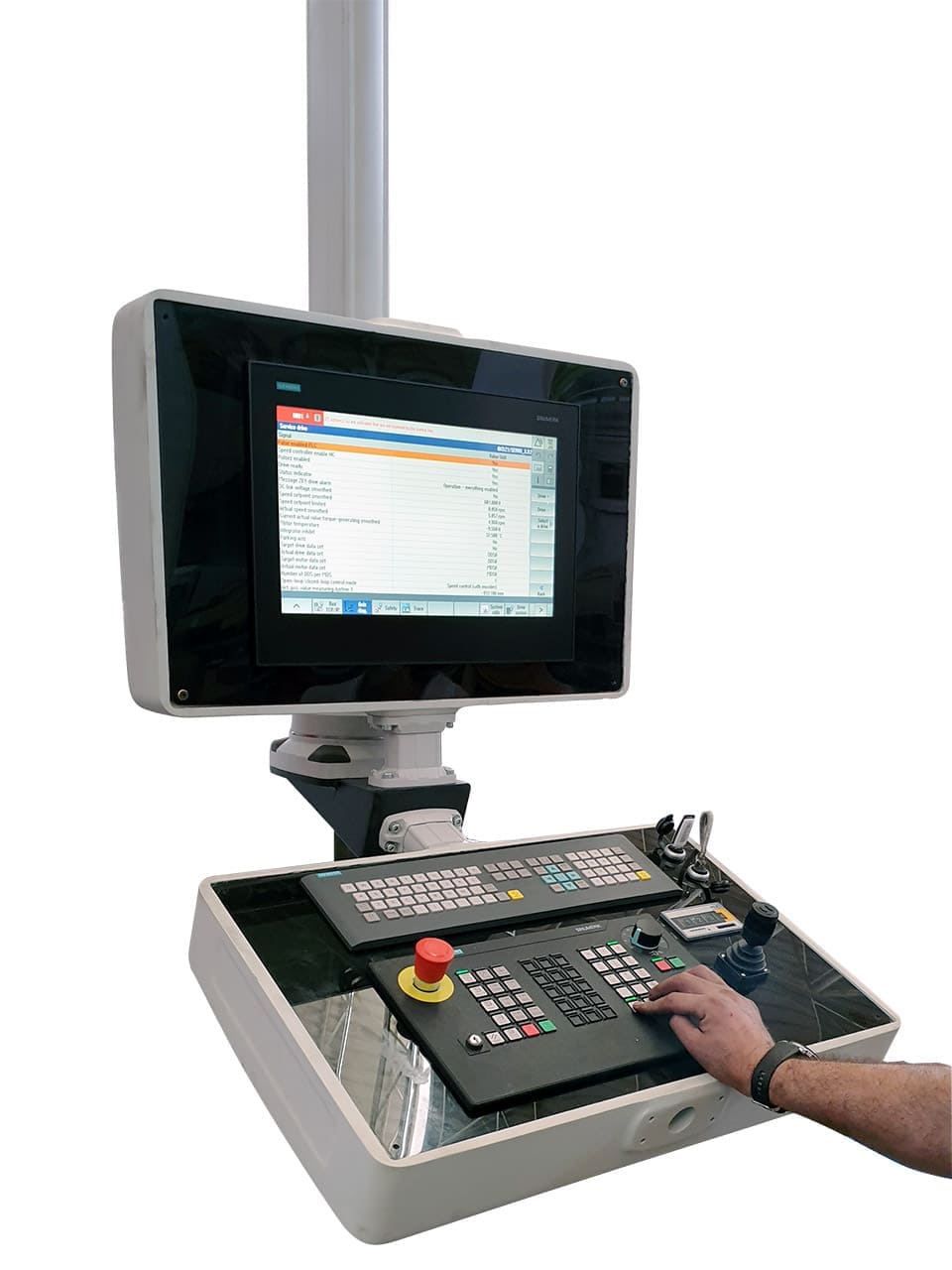

SIEMENS, FANUC or HEIDENHAIN CNC Controllers

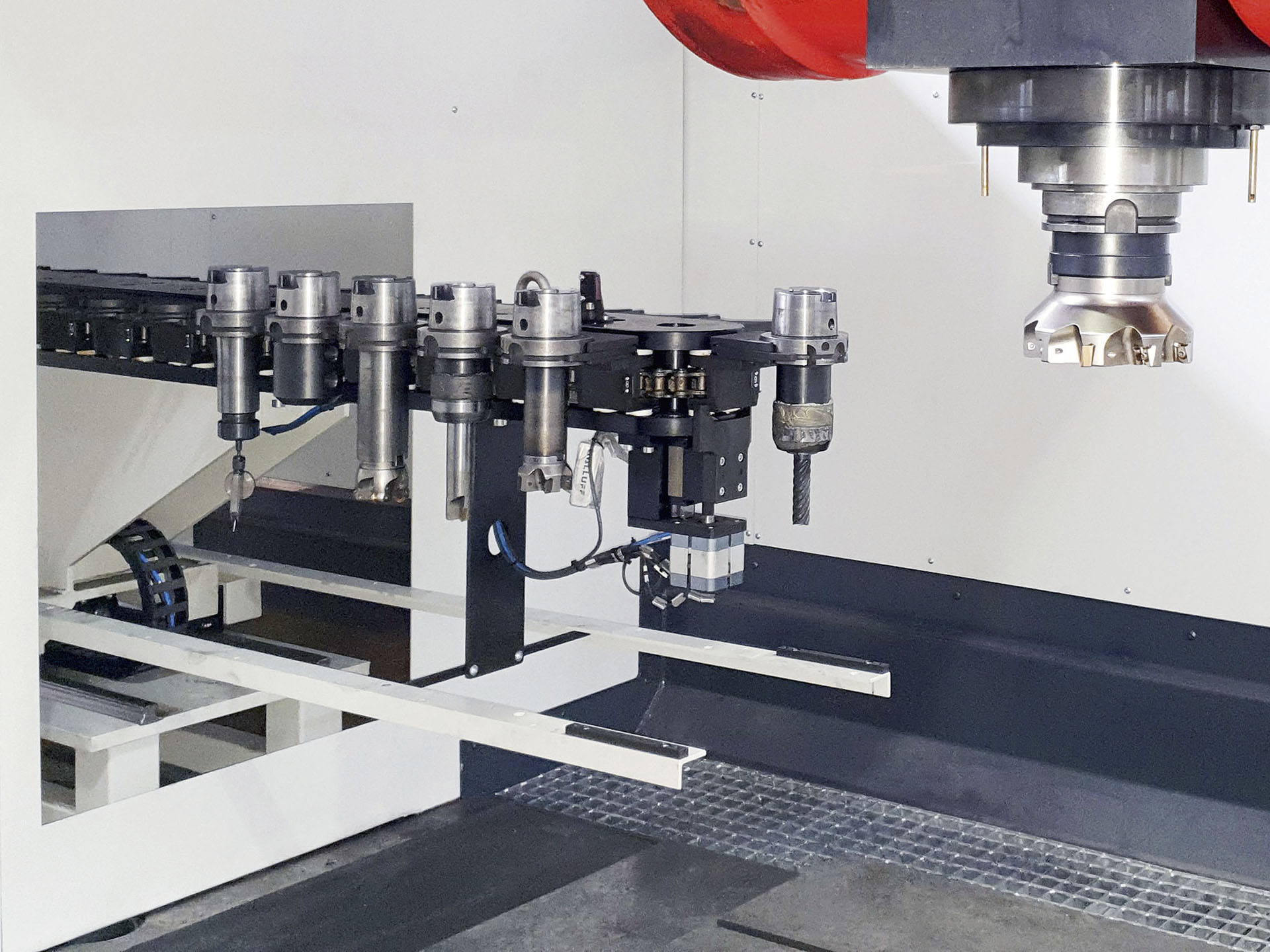

Optional 24-48-96 Tool Capacity ATC
Chip Conveyor
RENISHAW, BLUM or HEIDENHAIN Laser Touch Probe and Laser Tool Measuring Device
Coolant Through the Spindle, Auto Lubrication and Cooling Unit
Air Conditioned Electrical Cabinet
Active Dome Camera
WAVE SKY Motorised Bellows for the Protection of the Roof
Rapid, Efficient Service Support
Oil Mist Vapor Suction Systems
CE Norm Safety Standards

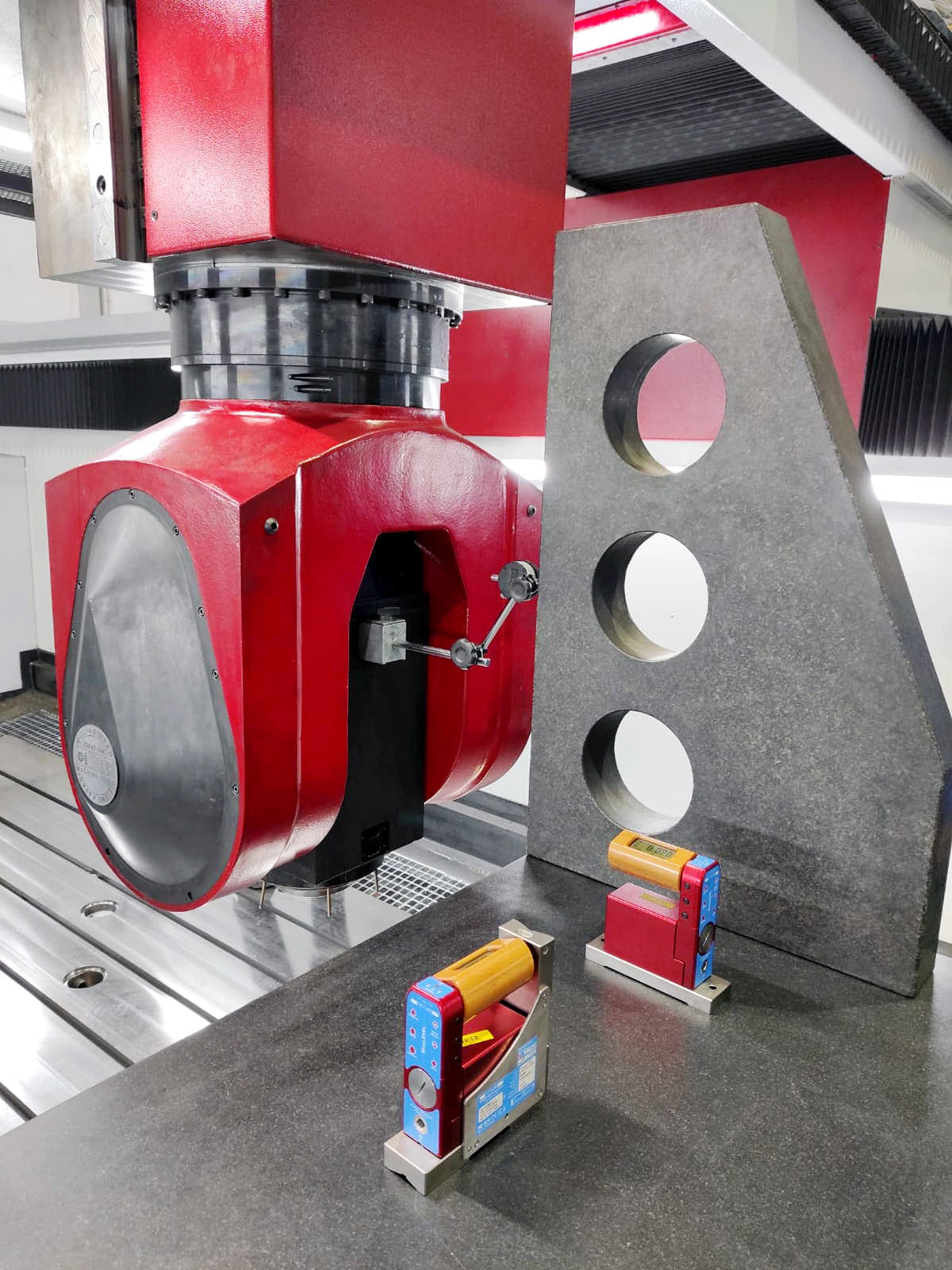

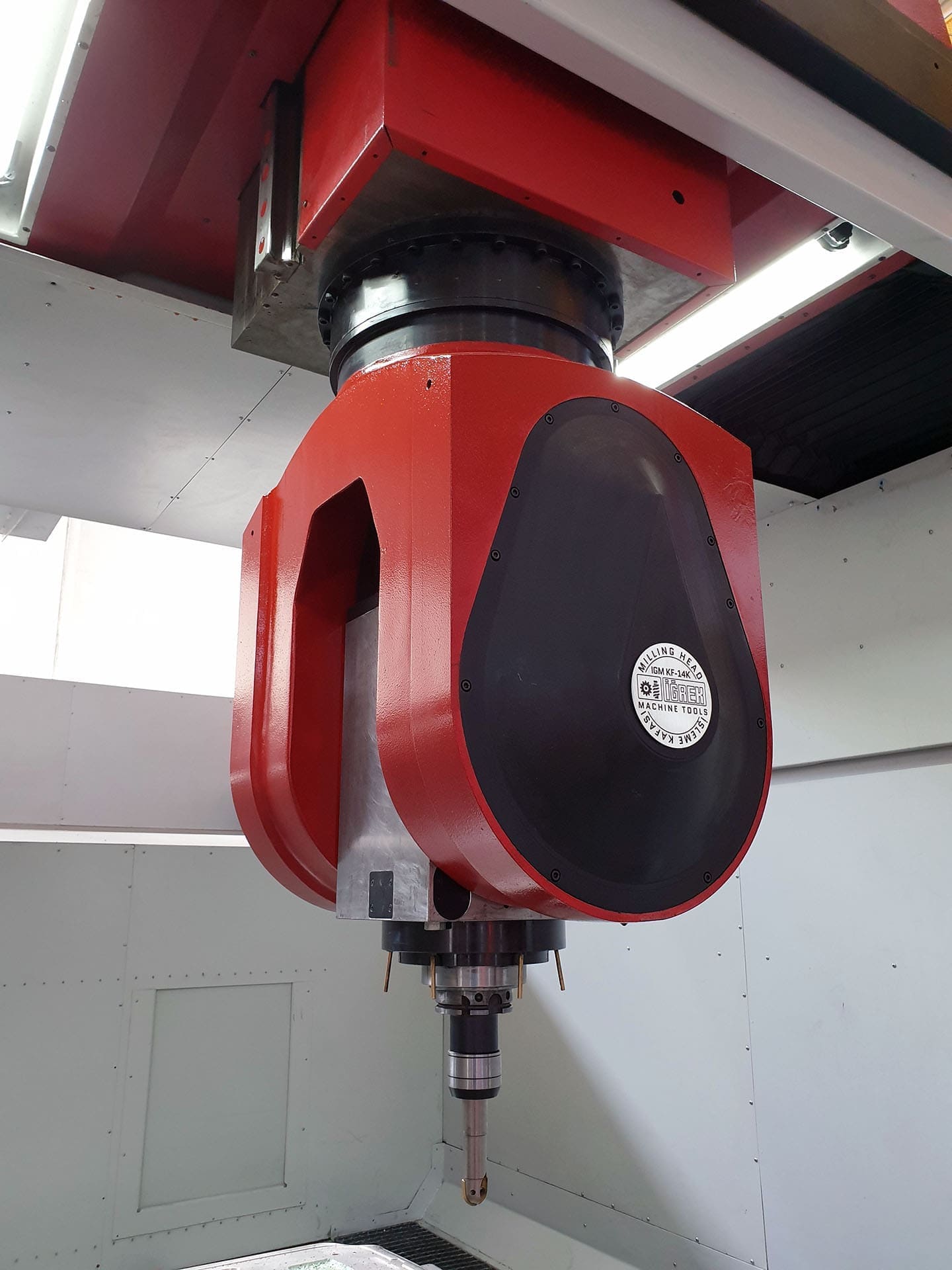

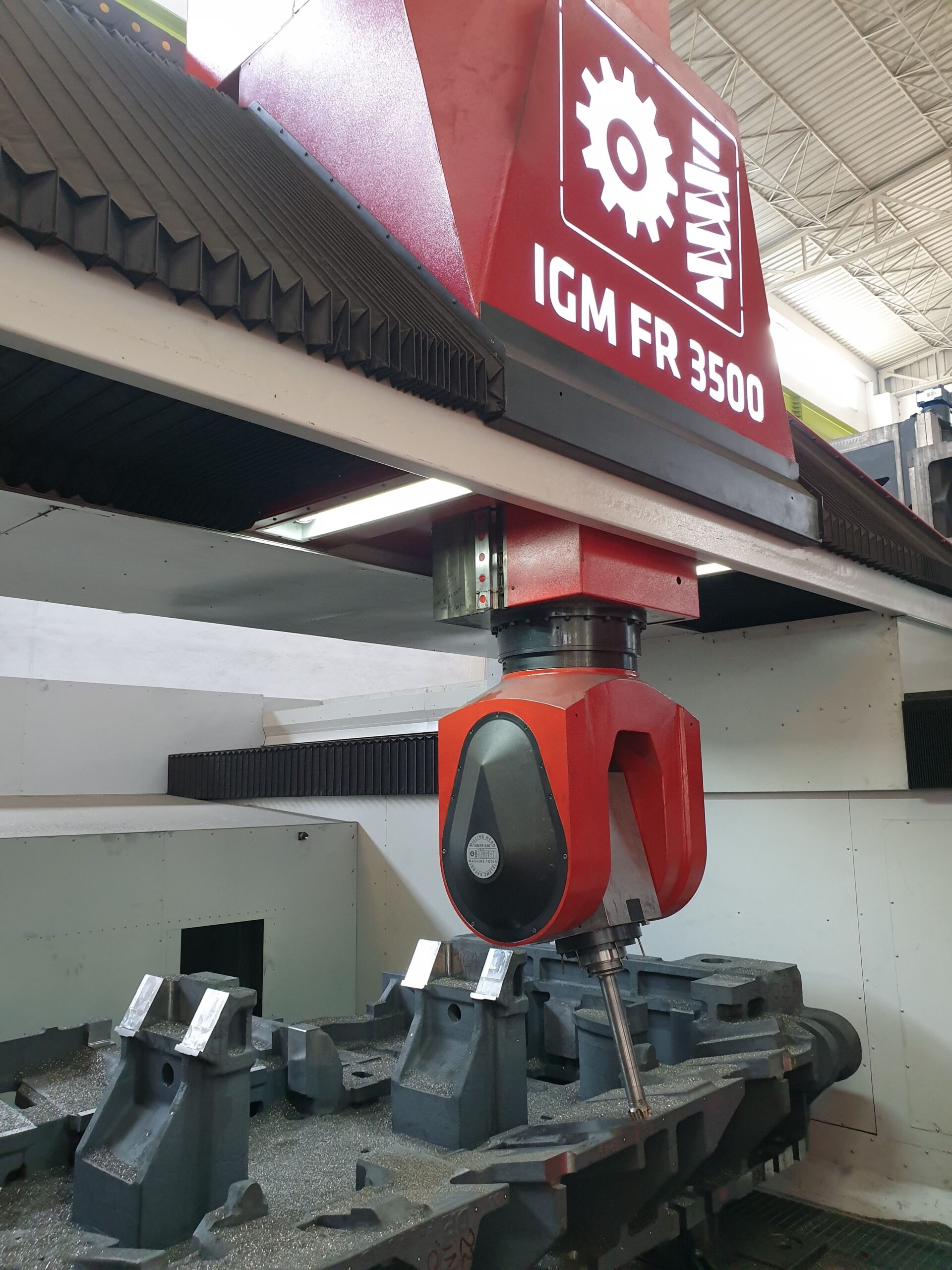

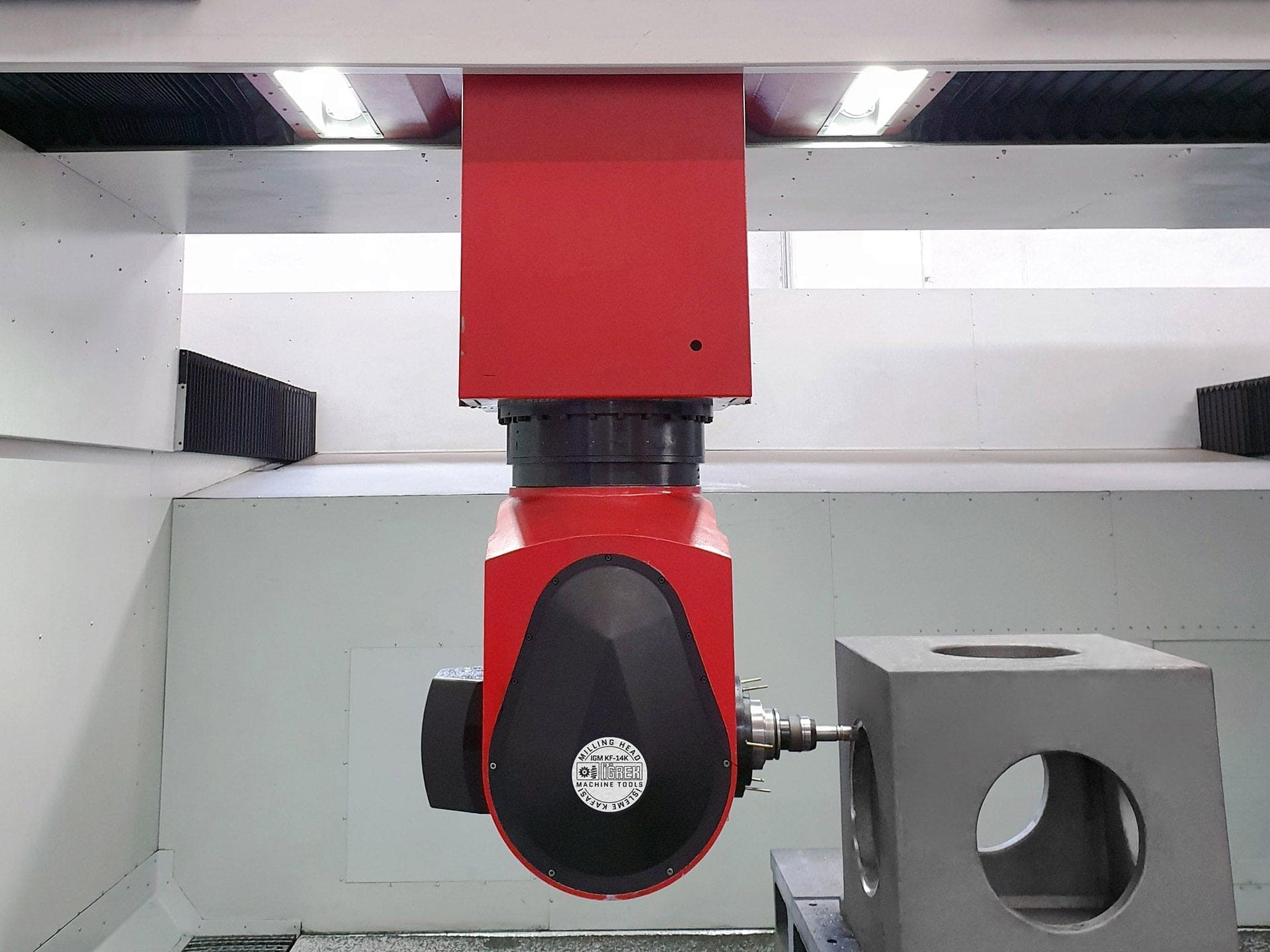

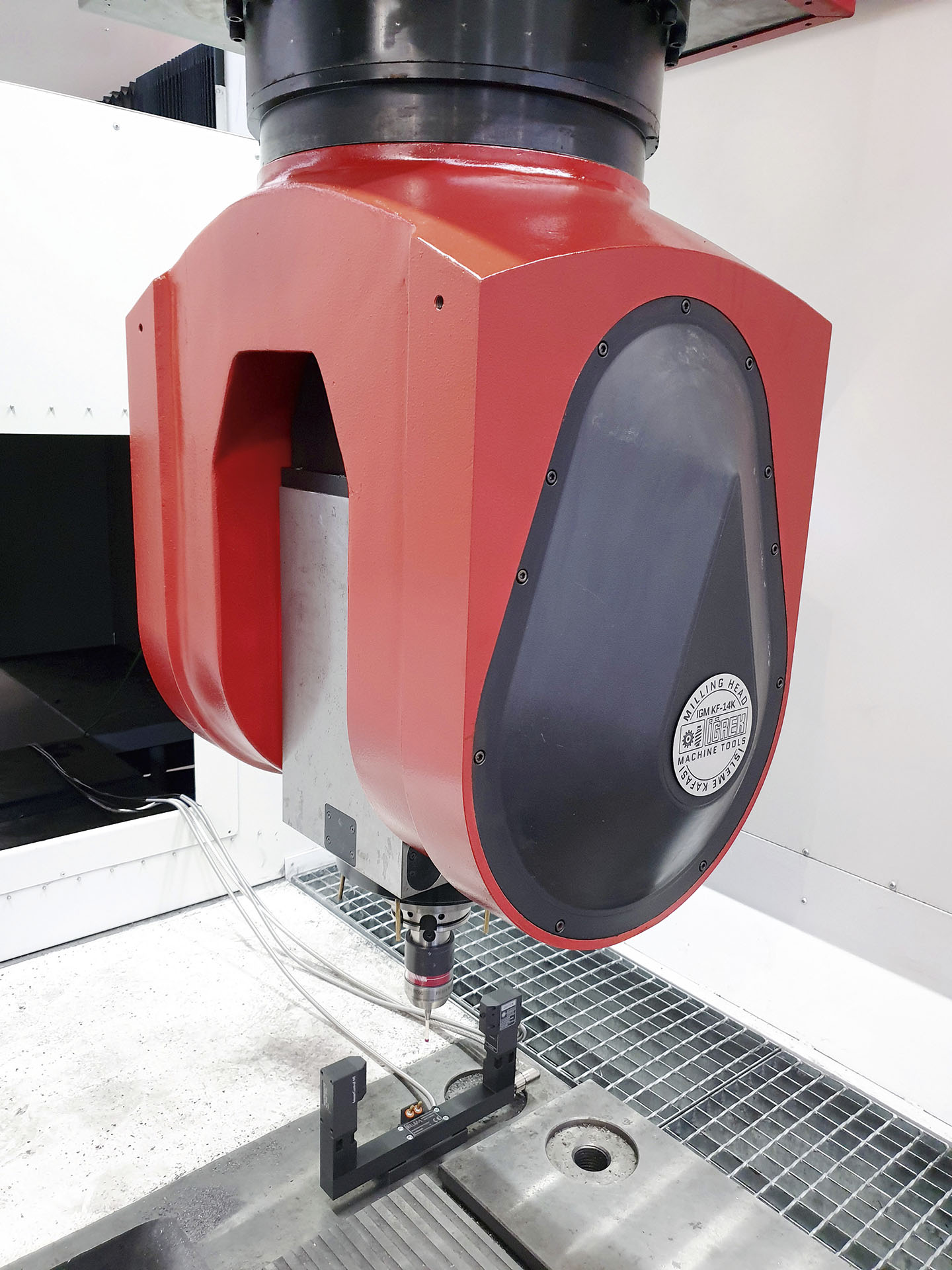

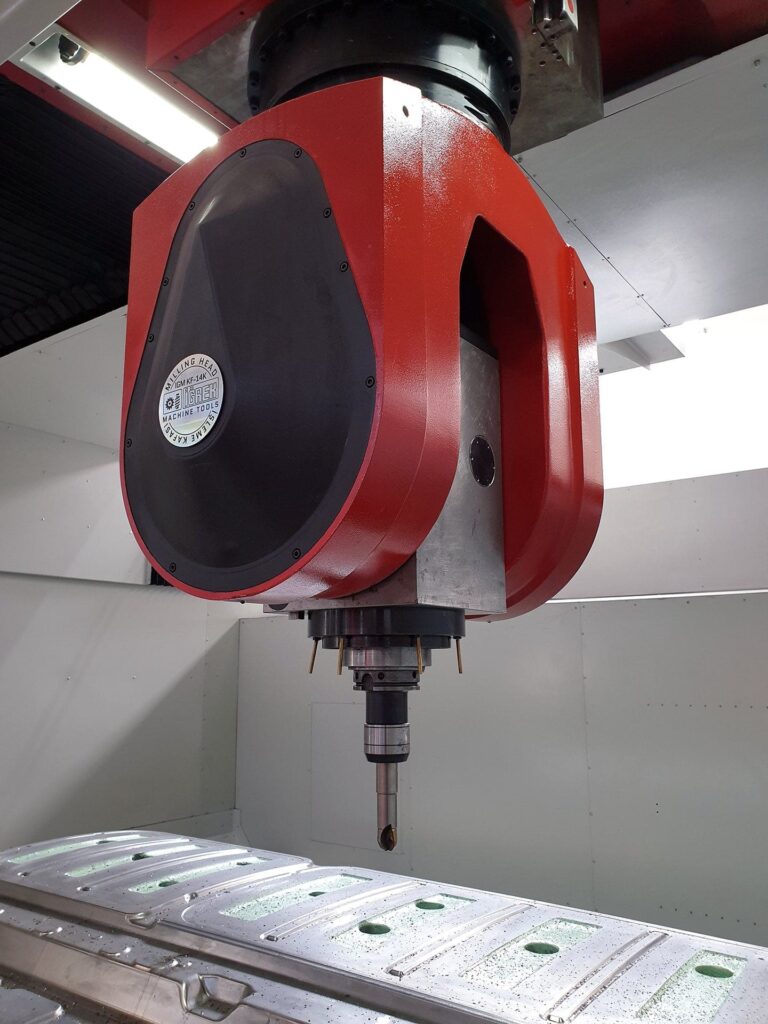

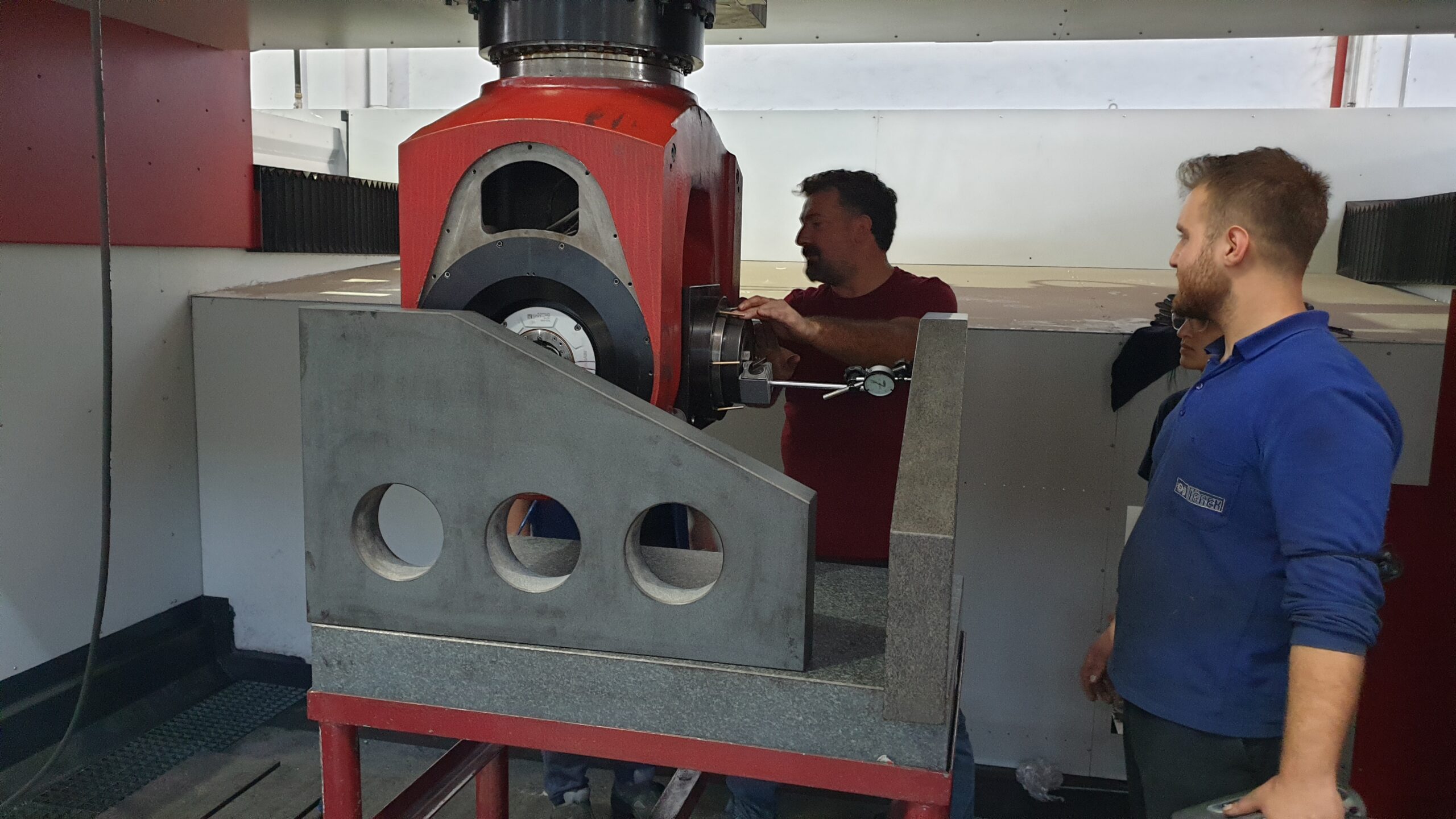

Main body of the continuous fork type milling head is made of cast iron. The spindle is equipped with special ceramic bearings, pulverized lubrication system, internal and external cooling availability. The high-tech A-Axis and C-Axis are equipped with direct drive torque motors, brake systems and encoders. For any special requests on spindle and milling heads, please do not hesitate to contact us.

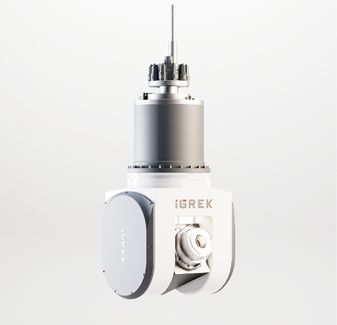

FTH-202

12500 rpm 200 Nm / 24000 rpm 80 Nm

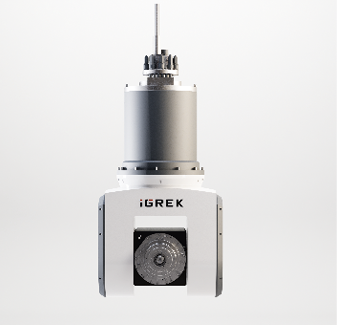

FTH-270

15000 rpm 300 Nm / 12000 rpm 500 Nm

OTH-AS

Orthogonal Full Automatic / Spindle Changing Head

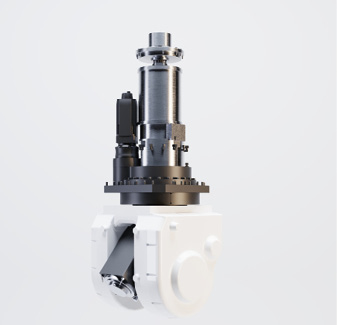

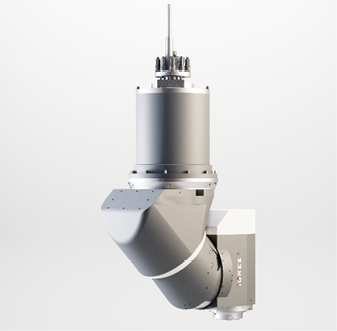

MTH Hi-Torq

4000 rpm 1400 Nm

Milling Head		FTH-202	FTH-270	OTH-AS	MTH-HiTorq
C-Axis Rotation	°	± 360	± 360	± 360	± 400
C-Axis Power	kW	22	26	22	–
C-Axis Torque S1 – S6	Nm	1200 – 1700	2500 / 5700	1200 – 1700	2400
C-Axis Speed	rom	50 – 120	100	100	–
C-Axis Braking Torque	Nm	4000	6000	4000	5000
A-Axis Rotation	°	± 115	± 115	± 360	+30 / -120
A-Axis Power	kW	6 x 2 = 12	8,5 x 2 – 17	10	–
A-Axis Torque S1 – S6	Nm	500 / 700 x 2 = 1000 / 1400	1100 / 2200 x 2 = 2200 / 4400	1510 / 3020	3000
A-Axis Speed	rpm	50 – 120	100	100	–
A-Axis Braking Torque	Nm	4000	6000	6000	5000
Head Dimensions	mm	625 x 420 x 700	750 x 500 x 800	575 x 575 x 935	690 x 600 x808
